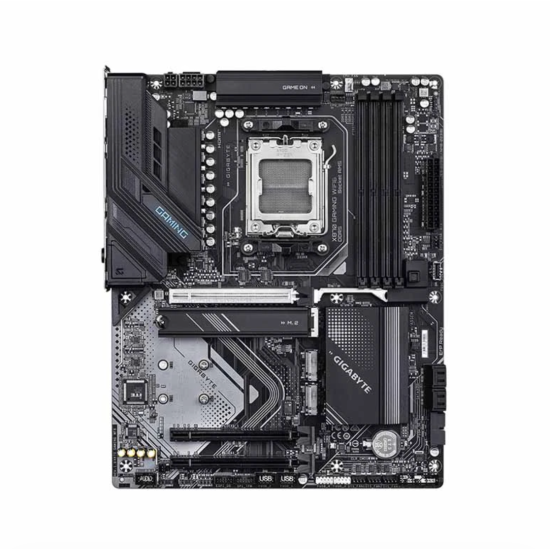

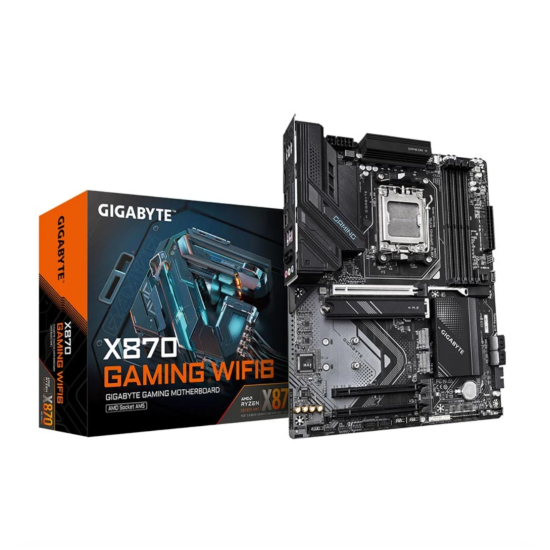

GIGABYTE X870 GAMING WIFI6 AM5 DDR5 Motherboard
The GIGABYTE X870 GAMING WIFI6 is an AMD AM5 motherboard designed for modern gaming PCs, performance desktops, and content creation systems. Also identified by GIGABYTE as X870 GAMING WF6, it uses the AMD X870 chipset and supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. It combines DDR5 memory, PCIe 5.0, three M.2 slots, 2.5GbE LAN, Wi-Fi 6, and dual USB4 Type-C connectivity.
AMD AM5 Platform and X870 Chipset
The motherboard features an AMD Socket AM5 and supports Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. Its 8+2+2 digital twin VRM design, 6-layer PCB, premium chokes, and capacitors provide a solid power-delivery platform for gaming and high-performance desktop configurations.
DDR5 Memory Support up to 256GB
The X870 GAMING WIFI6 comes with four DDR5 DIMM slots and supports up to 256GB of system memory. Supported memory speeds reach up to DDR5-8200 MT/s (OC), depending on the processor, memory configuration, and installed modules. AMD EXPO and XMP memory profiles are supported for convenient memory tuning.
PCIe 5.0 and Three M.2 Slots
For graphics expansion, the primary full-length PCIe slot supports PCIe 5.0 x16. The motherboard also provides two PCIe 3.0 x1 slots for additional expansion devices.
Storage connectivity includes three M.2 slots: one PCIe 5.0 x4 slot and two PCIe 4.0 M.2 slots. Four SATA 6Gb/s connectors provide additional storage options for SATA SSDs and hard drives.
Wi-Fi 6 and 2.5GbE Networking
Unlike the newer Wi-Fi 7 models in the X870 range, the X870 GAMING WIFI6 uses Wi-Fi 6 (802.11ax) wireless networking. GIGABYTE specifies wireless connectivity with speeds of up to 2.4Gbps under supported conditions. The motherboard also features 2.5GbE LAN for high-speed wired networking.
Dual USB4 Type-C Connectivity
The motherboard provides two USB4 Type-C ports supporting transfer speeds of up to 40Gbps per port and DisplayPort Alt Mode. It also features an HDMI port for processor-integrated graphics output, with supported display capabilities depending on the installed CPU.
Thermal Design and Easy Installation
GIGABYTE equips the board with VRM Thermal Armor Advanced and M.2 Thermal Guard for thermal management. DIY-focused features include EZ-Latch Plus, screwless M.2 installation, WIFI EZ-Plug, Q-Flash Plus, Smart Fan 6, and GIGABYTE Control Center support.
Key Features
-
AMD Socket AM5 for Ryzen 9000/8000/7000 Series processors
-
AMD X870 chipset
-
4× DDR5 DIMM slots, up to 256GB
-
DDR5 up to 8200 MT/s (OC)
-
PCIe 5.0 x16 graphics slot
-
3× M.2 slots: 1× PCIe 5.0 and 2× PCIe 4.0
-
4× SATA 6Gb/s ports
-
2.5GbE LAN
-
Wi-Fi 6 802.11ax
-
Dual USB4 Type-C ports up to 40Gbps
-
HDMI output
-
8+2+2 digital twin VRM design
-
ATX 30.5 × 24.4cm form factor
Why Choose GIGABYTE X870 GAMING WIFI6?
The GIGABYTE X870 GAMING WIFI6 is a practical choice for users who want the AMD X870 platform with strong expansion and connectivity without specifically requiring Wi-Fi 7. Its combination of AM5 CPU support, DDR5, PCIe 5.0, three M.2 slots, 2.5GbE LAN, Wi-Fi 6, and dual USB4 makes it suitable for modern gaming, productivity, and performance-oriented PC builds.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE X870 GAMING WIFI6 support?
It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors using the AM5 socket.
How much RAM does this motherboard support?
It supports up to 256GB of DDR5 memory through four DIMM slots.
What is the maximum DDR5 speed?
The motherboard supports DDR5 speeds up to 8200 MT/s (OC), depending on the CPU and memory configuration.
Does it support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0.
How many M.2 slots are available?
There are three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 slots.
Does the X870 GAMING WIFI6 support Wi-Fi 7?
No. This model uses Wi-Fi 6 (802.11ax).
Does it have 2.5GbE LAN?
Yes. The motherboard includes 2.5GbE LAN for high-speed wired networking.
Does it have USB4?
Yes. It features two USB4 Type-C ports with up to 40Gbps connectivity and DisplayPort Alt Mode.
What is the motherboard form factor?
The GIGABYTE X870 GAMING WIFI6 uses the ATX form factor, measuring 30.5 × 24.4cm.
Is X870 GAMING WF6 the same model?
Yes. X870 GAMING WF6 is the model designation shown by GIGABYTE for the X870 GAMING WIFI6 motherboard.
