GIGABYTE B850 EAGLE WIFI6E AM5 DDR5 Motherboard
The GIGABYTE B850 EAGLE WIFI6E is an ATX motherboard designed for modern AMD Ryzen gaming PCs, performance desktops, and productivity-focused systems. Built around the AMD B850 chipset and AM5 socket, it supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. It combines DDR5 memory support, PCIe 5.0 graphics connectivity, three M.2 slots, Wi-Fi 6E, and Gigabit Ethernet in a versatile ATX platform.
AMD AM5 Platform and B850 Chipset
The motherboard supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors through the AM5 socket. The B850 chipset provides a modern platform for gaming, everyday computing, content creation, and high-performance desktop applications.
DDR5 Memory Support up to 256GB
The B850 EAGLE WIFI6E features four DDR5 DIMM slots with dual-channel memory architecture and supports up to 256GB of system memory. GIGABYTE specifies memory speeds up to DDR5-8200 MT/s (OC), depending on the processor, memory configuration, and installed modules. AMD EXPO and Intel XMP memory profiles are supported.
PCIe 5.0 Graphics Support
The primary PCIe x16 slot is connected directly to the CPU and supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors. Ryzen 8000 processors provide PCIe 4.0 connectivity according to the specific CPU configuration.
The motherboard also provides three additional PCIe x16-sized slots operating at PCIe 3.0 x1, offering flexibility for expansion cards and other compatible devices.
Three M.2 Slots and SATA Storage
For fast NVMe storage, the B850 EAGLE WIFI6E provides three M.2 slots. The primary CPU-connected M.2 slot supports PCIe 5.0 x4/x2 SSDs with Ryzen 9000/7000 processors, while the second supports PCIe 4.0 x4/x2 and the chipset-connected third slot supports PCIe 4.0 x2.
Four SATA 6Gb/s connectors are also available for SATA SSDs and hard drives. The motherboard supports RAID configurations for compatible NVMe and SATA storage.
Wi-Fi 6E and Gigabit LAN
The motherboard includes Wi-Fi 6E with support for the 2.4GHz, 5GHz, and 6GHz bands and 160MHz wireless operation. Depending on PCB revision, GIGABYTE specifies either Intel Wi-Fi 6E AX210 or Realtek Wi-Fi 6E RTL8852CE, with Bluetooth 5.3.
For wired networking, the board uses a Realtek Gigabit Ethernet controller supporting 1Gbps, 100Mbps, and 10Mbps connections.
Display and USB Connectivity

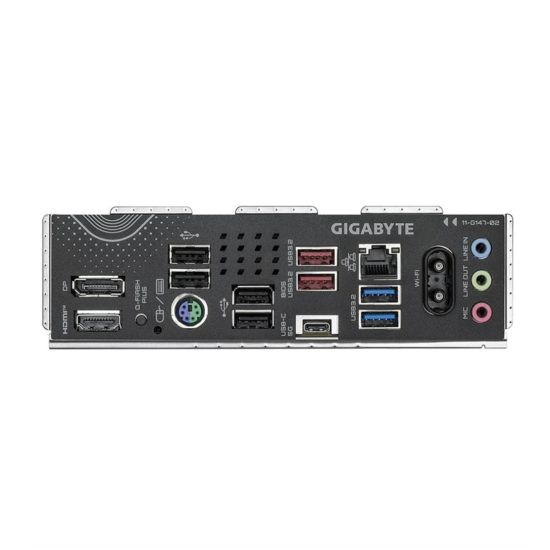

The rear I/O includes DisplayPort 1.4 supporting up to 3840 × 2160 at 144Hz and HDMI 2.1 supporting up to 4096 × 2160 at 60Hz, with actual graphics capability depending on the installed processor.
USB connectivity includes USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-C, additional USB 3.2 Gen 1 ports, and USB 2.0/1.1 connectivity for peripherals and accessories.
Practical Features for PC Builders
GIGABYTE includes Q-Flash Plus, Q-Flash, Smart Backup, GIGABYTE Control Center, hardware monitoring, fan-speed control, and multiple RGB headers. These features provide convenient BIOS updating, system management, cooling control, and customization options.
Key Features
-
AMD Socket AM5 for Ryzen 9000/8000/7000 Series processors
-
AMD B850 chipset
-
4× DDR5 DIMM slots, up to 256GB
-
DDR5 up to 8200 MT/s (OC)
-
PCIe 5.0 x16 graphics slot
-
3× M.2 slots with PCIe 5.0/4.0 support
-
4× SATA 6Gb/s connectors
-
Wi-Fi 6E and Bluetooth 5.3
-
Realtek Gigabit LAN
-
DisplayPort 1.4 and HDMI 2.1
-
Q-Flash Plus and Smart Backup
-
ATX 30.5 × 24.4cm form factor
Why Choose GIGABYTE B850 EAGLE WIFI6E?
The GIGABYTE B850 EAGLE WIFI6E is a capable choice for users building an AMD Ryzen-based gaming or productivity PC. Its combination of AM5 processor support, DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 6E, Bluetooth 5.3, and Gigabit LAN provides a balanced feature set for modern desktop systems.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE B850 EAGLE WIFI6E support?
It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors using the AM5 socket.
How much RAM does this motherboard support?
It supports up to 256GB of DDR5 memory through four DIMM slots.
What is the maximum DDR5 speed?
The motherboard supports DDR5 speeds up to 8200 MT/s (OC), depending on the CPU and memory configuration.
Does the B850 EAGLE WIFI6E support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors.
How many M.2 slots are available?
There are three M.2 slots, with PCIe 5.0 and PCIe 4.0 support depending on the slot and processor.
Does it support Wi-Fi 6E?
Yes. It supports Wi-Fi 6E across the 2.4GHz, 5GHz, and 6GHz bands.
What Bluetooth version does it support?
The integrated wireless module supports Bluetooth 5.3.
Does it have Gigabit LAN?
Yes. The motherboard includes a Realtek Gigabit Ethernet controller with up to 1Gbps wired networking.
What is the motherboard form factor?
The B850 EAGLE WIFI6E is an ATX motherboard measuring 30.5 × 24.4cm.
Does it support HDMI 2.1?
Yes. It includes an HDMI 2.1 port supporting up to 4096 × 2160 at 60Hz, depending on CPU graphics capability.
