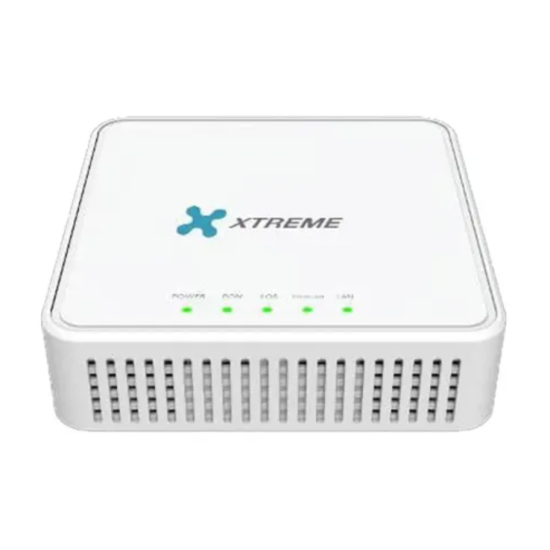

Xtreme XT1GE-XP-A 1G XPON ONU
The Xtreme XT1GE-XP-A is a 1G XPON ONU designed for fiber-based broadband and FTTH network installations. It supports GPON and EPON networks, allowing it to work with compatible optical access systems.
The unit features an SC/UPC optical interface and a 1000Mbps RJ45 Ethernet port, making it suitable for connecting a computer, router, or other network equipment to a fiber connection.
GPON & EPON Dual-Mode Support
The XT1GE-XP-A can automatically adapt to compatible GPON and EPON networks. This dual-mode capability provides greater flexibility when deploying the ONU with different compatible OLT environments.
Gigabit Ethernet Port
The device provides 1 × 10/100/1000Mbps RJ45 LAN port, allowing Gigabit Ethernet connectivity between the ONU and connected network equipment.
A separate Wi-Fi router can be connected when wireless network access is required.
SC/UPC Fiber Interface
The optical connection uses an SC/UPC interface, making the device suitable for compatible fiber installations that use this connector type.
Routing & Bridge Modes
The XT1GE-XP-A supports both bridge and router modes. Listed features also include NAT/NAPT, DHCP, PPPoE, static IP, VLAN management, port mapping and static routing.
Network Management
For network administration, the ONU supports OMCI, Web and Telnet management. It also supports remote management through the OLT in compatible deployments.
Security & QoS Features
The device includes several network management and security functions, including basic firewall, access control, MAC/IP/URL filtering, anti-DDoS protection and QoS-related features.
Key Features
-
GPON & EPON Dual-Mode Support
-
1G XPON Interface
-
SC/UPC Fiber Connector
-
1 × 10/100/1000Mbps RJ45 LAN
-
Bridge & Router Modes
-
NAT/NAPT Support
-
VLAN Management
-
OMCI, Web & Telnet Management
-
QoS Support
-
Basic Firewall & Access Control
-
Compact 95 × 95 × 30mm Design
-
12V/0.5A DC Power Supply
FAQ (Frequently Asked Questions)
1. What is the Xtreme XT1GE-XP-A?
It is a 1G XPON ONU designed to provide Ethernet connectivity over compatible GPON and EPON fiber networks.
2. Does it support both GPON and EPON?
Yes. The device supports dual-mode GPON and EPON operation and can automatically adapt to compatible networks.
3. What type of fiber connector does it use?
The PON interface uses an SC/UPC connector.
4. What Ethernet speed does it support?
It has a 10/100/1000Mbps RJ45 Ethernet port, supporting Gigabit Ethernet connectivity.
5. Can I connect a Wi-Fi router to it?
Yes. You can connect a compatible Wi-Fi router to the Gigabit Ethernet port to distribute the fiber internet connection over Wi-Fi.
6. Does it support router mode?
Yes. The device supports both router and bridge modes.
7. How can the ONU be managed?
The listed management options include OMCI, Web and Telnet.
8. Is it compatible with every ISP?
Not necessarily. The ISP must support the ONU and its GPON/EPON configuration. It is recommended to confirm OLT and provisioning compatibility before purchase.
