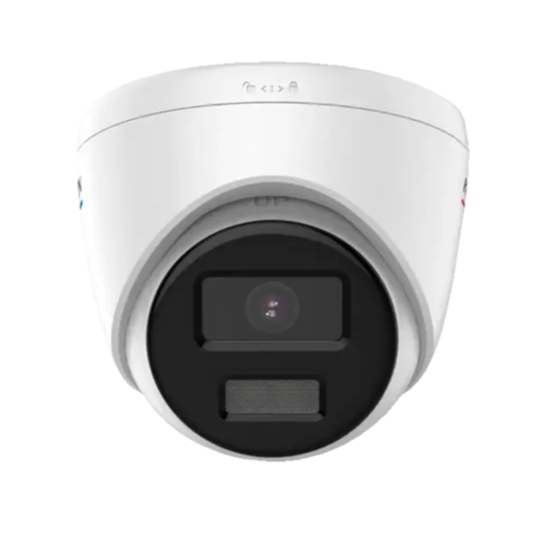

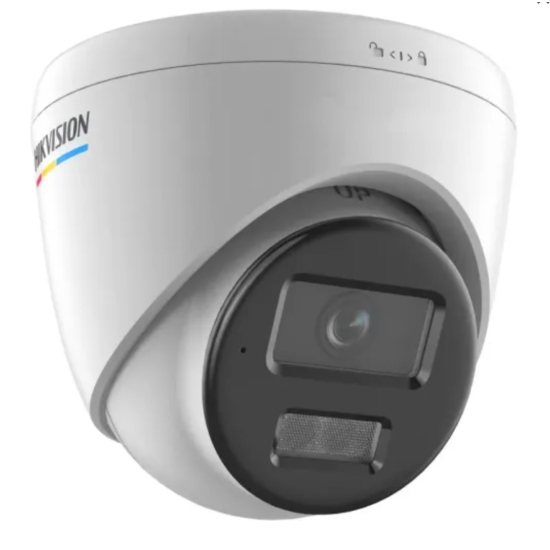

Hikvision DS-2CD1327G3-LIU 2MP ColorVu IP Camera
The Hikvision DS-2CD1327G3-LIU is a 2MP ColorVu 3.0 fixed turret network camera designed for reliable 24/7 surveillance in homes, offices, shops, commercial buildings and outdoor areas. It combines a 1/2.8-inch Progressive Scan CMOS sensor, Full HD 1920 × 1080 resolution, F1.0 aperture and Smart Hybrid Light technology to provide clear and colorful images in challenging lighting conditions. Hikvision officially lists person and vehicle detection, H.265+ compression, built-in audio support, PoE connectivity and IP67 protection for this model.
2MP Full HD ColorVu 3.0 Imaging
The camera uses a 1/2.8-inch Progressive Scan CMOS sensor and delivers a maximum resolution of 1920 × 1080 pixels. Its ColorVu 3.0 technology is designed for 24/7 colorful imaging, while the large F1.0 aperture improves light collection for low-light surveillance.
Hikvision specifies a minimum color illumination of 0.0005 Lux at F1.0 with AGC enabled, with 0 Lux when supplemental illumination is active. This allows the camera to maintain useful color information in very low-light environments.
Smart Hybrid Light for Night Surveillance
The DS-2CD1327G3-LIU features Smart Hybrid Light, combining IR and white-light illumination with a supplemental light range of up to 30 meters. The smart illumination system is designed to provide appropriate lighting according to the surveillance environment.
This makes the camera suitable for entrances, retail stores, homes, offices, warehouses, parking areas and other locations requiring continuous day-and-night monitoring.
Fixed Lens with Wide Viewing Angle
The camera is available with 2.8mm and 4mm fixed focal lens options. The 2.8mm lens provides a 106° horizontal field of view, while the 4mm lens provides an 88° horizontal field of view.
The official DORI specifications list detection distances of up to 44 meters with the 2.8mm lens and 53 meters with the 4mm lens, depending on the selected lens configuration.
Person and Vehicle Detection
The DS-2CD1327G3-LIU supports person and vehicle detection, helping surveillance systems distinguish human and vehicle targets from general motion. This can make security monitoring more relevant by reducing unnecessary motion-related events.
The camera also supports event functions and image features designed for practical security monitoring in residential and commercial installations.
H.265+ Video Compression
The camera supports H.265+, H.265, H.264+ and H.264 compression for the main stream, while the sub-stream supports H.265, H.264 and MJPEG. H.265+ can help reduce bandwidth and storage requirements compared with conventional video compression technologies.
The main stream supports up to 25fps at 50Hz or 30fps at 60Hz at 1920 × 1080 resolution. ROI encoding and scalable video coding are also supported for compatible H.264 and H.265 configurations.
Built-in Audio and PoE Connectivity
The DS-2CD1327G3-LIU supports mono audio and environmental noise filtering, with compatibility with several audio compression formats including G.711, G.722.1, G.726, MP2L2, PCM, MP3 and AAC-LC.
For networking, the camera uses a 10/100 Mbps RJ45 Ethernet interface and supports IEEE 802.3af Class 3 PoE. PoE allows compatible network infrastructure to provide both data and power through a single Ethernet cable, simplifying installation.
IP67 Protection for Outdoor Installation
The DS-2CD1327G3-LIU is rated IP67 for water and dust resistance, making it suitable for outdoor as well as indoor surveillance applications. Its turret design allows flexible positioning, with adjustment of pan 0°–360°, tilt 0°–75° and rotation 0°–360°.
The camera is designed to operate across a broad temperature range and can therefore be used in a variety of residential, retail, office and commercial environments.
Key Features
-
Image Sensor: 1/2.8" Progressive Scan CMOS
-
Resolution: 2MP, 1920 × 1080 Full HD
-
Technology: ColorVu 3.0, 24/7 Color Imaging
-
Lens: Fixed 2.8mm / 4mm Options
-
Aperture: F1.0
-
Smart Light: IR + White Light Smart Hybrid Light
-
Supplement Light: Up to 30m
-
Detection: Person and Vehicle Detection
-
Compression: H.265+, H.265, H.264+, H.264
-
Audio: Mono Audio with Noise Filtering
-
Network: 10/100M RJ45 Ethernet
-
PoE: IEEE 802.3af Class 3
-
Protection: IP67 Water and Dust Resistant
-
Main Stream: Up to 25fps/30fps at 1920 × 1080
-
Lens Mount: M12
Why Choose Hikvision DS-2CD1327G3-LIU?
The Hikvision DS-2CD1327G3-LIU combines 2MP Full HD imaging, ColorVu 3.0, F1.0 optics and Smart Hybrid Light in a compact fixed turret design. Its 24/7 color imaging capability is particularly useful where identifying colors and visual details at night is important.
With person and vehicle detection, 30-meter Smart Hybrid Light, H.265+ compression, PoE connectivity and IP67 protection, the camera is suitable for a wide range of CCTV installations. The availability of 2.8mm and 4mm lens options also allows the camera to be selected according to the required viewing area.
Configuration note: The DS-2CD1327G3-LIU is available with 2.8mm and 4mm lens options. Do not confuse the standard -LIU model with -LIUF variants, which add onboard storage support through an SD card slot.
FAQ (Frequently Asked Questions)
What is the resolution of Hikvision DS-2CD1327G3-LIU?
The camera provides 2MP Full HD resolution at 1920 × 1080 pixels.
Does the DS-2CD1327G3-LIU support ColorVu?
Yes. It features Hikvision ColorVu 3.0 technology for 24/7 colorful imaging.
What lens options are available?
The camera is available with 2.8mm and 4mm fixed focal lens options.
How far does the Smart Hybrid Light reach?
The supplemental Smart Hybrid Light has a range of up to 30 meters.
Does the camera support person and vehicle detection?
Yes. It supports person and vehicle detection for security monitoring.
Does Hikvision DS-2CD1327G3-LIU support PoE?
Yes. It supports IEEE 802.3af Class 3 PoE through its Ethernet connection.
Does this camera support audio?
Yes. The camera supports mono audio and environmental noise filtering.
Is the DS-2CD1327G3-LIU suitable for outdoor use?
Yes. Its IP67 water and dust resistance rating makes it suitable for outdoor surveillance installations.
Does it support H.265+?
Yes. H.265+ is supported on the main video stream.
Does the camera support night vision?
Yes. It uses IR and white-light Smart Hybrid Light with a supplemental illumination range of up to 30 meters.
What is the maximum video frame rate?
The main stream supports up to 25fps at 50Hz or 30fps at 60Hz at 1920 × 1080 resolution.
Does DS-2CD1327G3-LIU have an SD card slot?
The standard DS-2CD1327G3-LIU specification does not list onboard SD-card storage. The DS-2CD1327G3-LIUF variant is the version specifically listed with onboard storage support up to 512GB.
