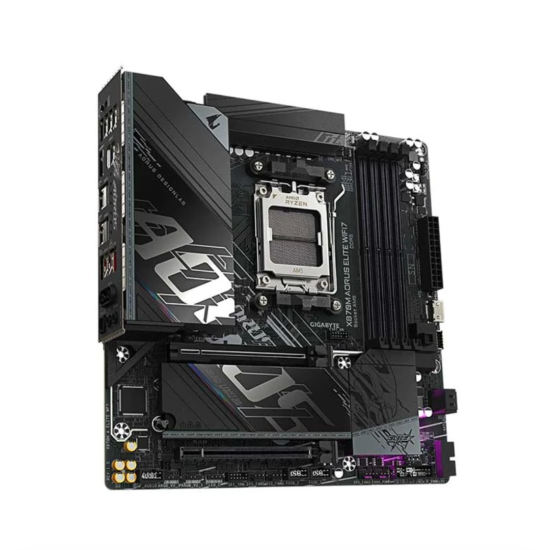

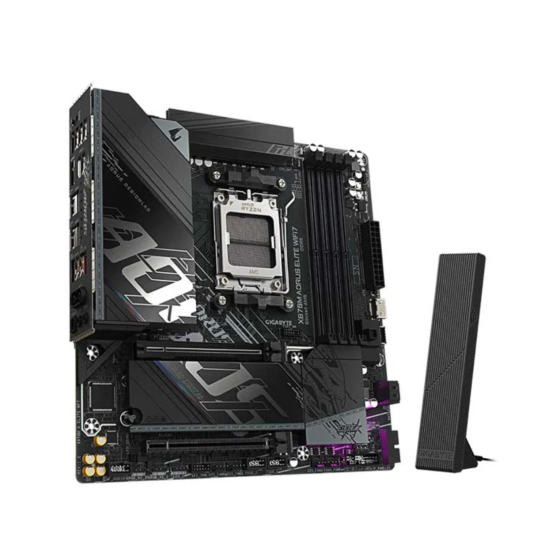

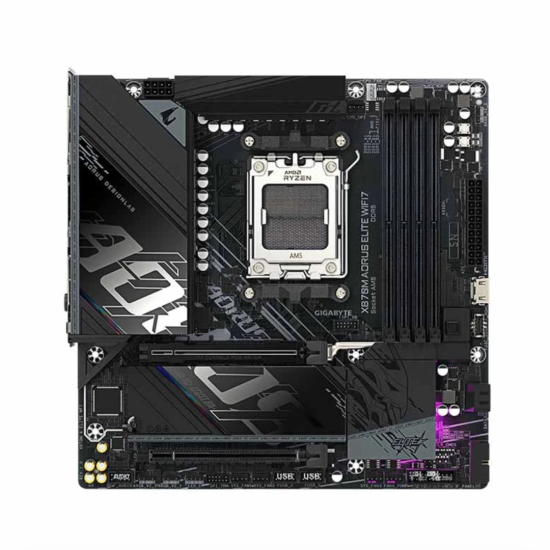

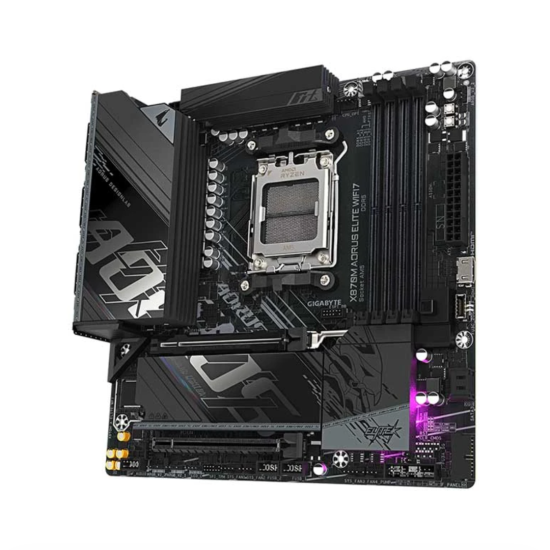

GIGABYTE X870M AORUS ELITE WIFI7 AM5 DDR5 Motherboard
The GIGABYTE X870M AORUS ELITE WIFI7 is a compact Micro ATX AMD AM5 motherboard designed for modern gaming PCs, high-performance desktops, content creation, and productivity systems. Powered by the AMD X870 chipset, it supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. The motherboard combines DDR5 memory support, PCIe 5.0 graphics connectivity, high-speed NVMe storage, Wi-Fi 7, 2.5GbE LAN, and dual USB4 connectivity in a compact 24.4 × 24.4 cm form factor.
AMD AM5 Platform and X870 Chipset
The motherboard uses the AMD Socket AM5 platform and is compatible with supported Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. GIGABYTE equips it with a 14+2+2 digital twin VRM design, a 6-layer PCB, premium chokes and capacitors, and enhanced thermal solutions for reliable operation. The board also supports GIGABYTE's X3D Turbo Mode for compatible Ryzen X3D processors.
DDR5 Memory up to 256GB
The X870M AORUS ELITE WIFI7 features four DDR5 DIMM slots with dual-channel memory architecture and supports up to 256GB of system memory. GIGABYTE specifies support for DDR5 speeds up to 8200 MT/s (OC), depending on processor, memory configuration and supported modules. AMD EXPO and Intel XMP memory profiles are supported for convenient memory tuning.
PCIe 5.0 and M.2 Storage
For graphics, the primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors. A secondary PCIe x16 slot operates at PCIe 4.0 x4, providing additional expansion flexibility.
For fast storage, the motherboard includes two M.2 slots. One supports PCIe 5.0 x4/x2 NVMe SSDs, while the second supports PCIe 4.0 x4/x2 SSDs. Two SATA 6Gb/s connectors are also available. NVMe RAID 0, RAID 1, RAID 5 and RAID 10 are supported, with RAID 5 limited to Ryzen 9000 Series processors.
Wi-Fi 7 and 2.5GbE LAN
Built-in Realtek Wi-Fi 7 provides wireless connectivity across 2.4GHz, 5GHz and 6GHz bands, while Bluetooth 5.4 provides connectivity for compatible peripherals. The motherboard also includes a Realtek 2.5GbE LAN controller for high-speed wired networking.
GIGABYTE notes that Wi-Fi 7 functionality requires Windows 11 SV3, while 6GHz availability depends on local regulations.
Dual USB4 and Display Connectivity

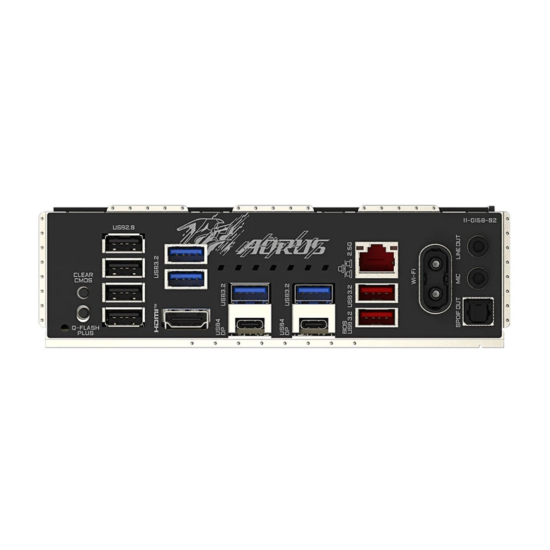

The rear I/O includes two USB4 Type-C ports with up to 40Gbps connectivity and DisplayPort video output support. It also provides HDMI 2.1 output with support for resolutions up to 4096 × 2160 at 60Hz, depending on the processor's integrated graphics capability.
Premium Audio and DIY Features
The motherboard uses the Realtek ALC1220 audio codec and supports up to 7.1-channel high-definition audio along with optical S/PDIF output. For easier PC assembly and maintenance, it includes EZ-Latch, EZ-Latch Click, Q-Flash Plus, Smart Backup and GIGABYTE Control Center support.
Key Features
-
AMD Socket AM5 for Ryzen 9000/8000/7000 Series processors
-
AMD X870 chipset
-
Micro ATX 24.4 × 24.4cm form factor
-
4× DDR5 DIMM slots, up to 256GB
-
DDR5 up to 8200 MT/s (OC)
-
PCIe 5.0 x16 graphics slot
-
2× M.2 slots with PCIe 5.0 and PCIe 4.0 support
-
2× SATA 6Gb/s connectors
-
Realtek 2.5GbE LAN
-
Realtek Wi-Fi 7 and Bluetooth 5.4
-
Dual USB4 Type-C 40Gbps ports
-
Realtek ALC1220 audio
-
Q-Flash Plus and Smart Backup support
Why Choose GIGABYTE X870M AORUS ELITE WIFI7?
The GIGABYTE X870M AORUS ELITE WIFI7 is an excellent choice for users who want modern AM5 platform features in a Micro ATX gaming motherboard. Its combination of DDR5 support, PCIe 5.0, Wi-Fi 7, 2.5GbE networking, dual USB4 ports and high-speed M.2 storage makes it suitable for compact yet powerful gaming and workstation builds.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE X870M AORUS ELITE WIFI7 support?
It supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series processors using the AM5 socket.
How much RAM does this motherboard support?
It supports up to 256GB of DDR5 memory through four DIMM slots.
What is the maximum DDR5 speed?
GIGABYTE specifies support for DDR5 speeds up to 8200 MT/s through overclocking, depending on the system configuration.
Does it support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen processors.
How many M.2 slots are available?
There are two M.2 slots: one PCIe 5.0 x4/x2 and one PCIe 4.0 x4/x2.
Does it have Wi-Fi 7?
Yes. It features Realtek Wi-Fi 7 with 2.4GHz, 5GHz and 6GHz band support.
Does it support 2.5GbE LAN?
Yes. The motherboard includes a Realtek 2.5GbE wired LAN controller.
Does it have USB4?
Yes. It provides two rear USB4 Type-C ports with up to 40Gbps connectivity and DisplayPort support.
What is the motherboard size?
It is a Micro ATX motherboard measuring 24.4 × 24.4cm.
Does it support Ryzen X3D processors?
Yes. It supports compatible AMD Ryzen X3D processors and includes GIGABYTE's X3D Turbo Mode feature.
