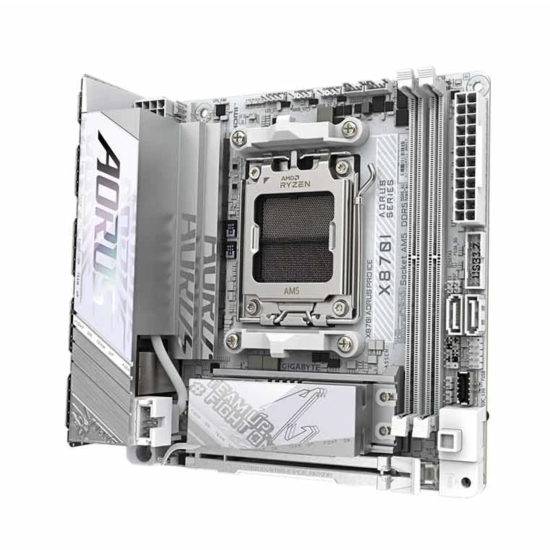

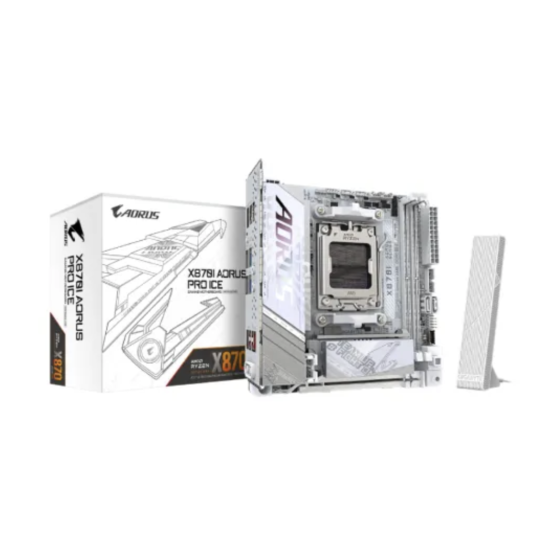

GIGABYTE X870I AORUS PRO ICE AMD AM5 DDR5 Motherboard
The GIGABYTE X870I AORUS PRO ICE is a premium Mini-ITX motherboard designed for compact, high-performance AMD Ryzen desktop systems. Built around the AMD X870 chipset and AM5 socket, it supports Ryzen 7000, 8000, and 9000 Series processors. Despite its compact 17 × 17 cm form factor, the motherboard provides DDR5 memory support, PCIe 5.0, dual M.2 storage, Wi-Fi 7, 2.5GbE LAN, USB4, and advanced connectivity.
AMD AM5 and X870 Platform
The X870I AORUS PRO ICE uses the AMD Socket AM5 platform and supports compatible AMD Ryzen 9000, 8000, and 7000 Series processors. The AMD X870 chipset provides a modern foundation for compact gaming PCs, enthusiast systems, and powerful small-form-factor workstations.
DDR5 Memory Support
The motherboard features 2 DDR5 DIMM slots with dual-channel memory architecture and supports up to 128GB of system memory using compatible modules.
It supports DDR5 memory speeds up to 8400 MT/s through overclocking on Revision 1.0, while Revision 1.1 supports speeds up to 8800 MT/s (OC). AMD EXPO and Intel XMP memory profiles are supported.
PCIe 5.0 Expansion
The X870I AORUS PRO ICE provides a full-length PCI Express x16 slot connected directly to the CPU. With compatible Ryzen 9000 and 7000 Series processors, the slot supports PCIe 5.0 x16.
Ryzen 8000 Series processor configurations can provide PCIe 4.0 x8 or x4 operation depending on the specific processor.
Dual M.2 Storage
For high-speed storage, the motherboard provides two M.2 connectors. The CPU-connected M.2 slot supports PCIe 5.0 x4/x2 SSDs with compatible Ryzen 9000 and 7000 Series processors, while the rear M.2 slot supports PCIe 4.0 x4/x2 SSDs.
It also includes 2 SATA 6Gb/s connectors and supports RAID configurations for compatible NVMe storage.
Wi-Fi 7 and Bluetooth 5.4
The integrated Realtek Wi-Fi 7 RTL8922AE wireless module supports 2.4GHz, 5GHz, and 6GHz frequency bands. It also supports Bluetooth 5.4 and 160MHz wireless operation.
Wi-Fi 7 features depend on compatible hardware, software, operating-system support, and regional 6GHz regulations.
2.5GbE High-Speed Networking
For wired networking, the motherboard uses a Realtek 2.5GbE LAN controller supporting 2.5Gbps, 1Gbps, and 100Mbps connections.
This provides higher wired network bandwidth than conventional Gigabit Ethernet for compatible routers, switches, and network infrastructure.
USB4 Connectivity
The X870I AORUS PRO ICE includes one rear USB4 Type-C port with DisplayPort video output support. The USB4 connection can support up to 3840 × 2160 at 240Hz under the specified configuration.
Additional USB 3.2 Gen 2 Type-C and Type-A ports provide connectivity for external storage, peripherals, smartphones, and other compatible devices.
HDMI 2.1 and Display Output
The motherboard provides an HDMI port with support for resolutions up to 4096 × 2160 at 60Hz. The integrated graphics capability depends on the installed AMD processor.
The USB4 Type-C port also supports DisplayPort video output for compatible displays.
Realtek ALC4080 Audio
For onboard audio, the X870I AORUS PRO ICE uses the Realtek ALC4080 codec and provides high-definition 2-channel audio through its rear audio connections.
This provides an integrated audio solution for compact PC builds without requiring a separate sound card.
Mini-ITX Compact Design
One of the key advantages of this motherboard is its Mini-ITX form factor, measuring only 17 × 17 cm.
This compact size makes it suitable for small-form-factor gaming PCs, compact workstations, living-room PCs, and other builds where internal space is limited.
Q-Flash Plus and Smart Features
GIGABYTE includes Q-Flash Plus, Q-Flash, Smart Backup, and GIGABYTE Control Center support. Q-Flash Plus allows compatible BIOS updates without requiring a CPU or memory installation.
The motherboard also includes hardware monitoring for voltage, temperature, fan speed, water-cooling flow, and fan-failure detection.
Why Choose GIGABYTE X870I AORUS PRO ICE?
The GIGABYTE X870I AORUS PRO ICE is designed for users who want high-end AMD platform features in a compact Mini-ITX motherboard. Its combination of AM5 compatibility, X870 chipset, DDR5 support, PCIe 5.0, dual M.2 slots, Wi-Fi 7, Bluetooth 5.4, 2.5GbE LAN, USB4, and HDMI 2.1 makes it well suited for compact gaming and enthusiast PC builds.
For customers searching for a GIGABYTE X870 Mini-ITX motherboard in Bangladesh, the X870I AORUS PRO ICE provides a powerful platform for building compact AMD Ryzen systems without sacrificing modern connectivity and high-speed expansion options.
FAQ (Frequently Asked Questions)
1. What chipset does GIGABYTE X870I AORUS PRO ICE use?
It uses the AMD X870 chipset.
2. Which processors are compatible with X870I AORUS PRO ICE?
It supports compatible AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket.
3. How much RAM does X870I AORUS PRO ICE support?
It supports up to 128GB of DDR5 memory through two DIMM slots.
4. What is the maximum DDR5 speed supported?
Revision 1.0 supports up to DDR5-8400 MT/s through overclocking, while Revision 1.1 supports up to DDR5-8800 MT/s (OC).
5. How many M.2 slots does this motherboard have?
The motherboard has 2 M.2 slots, including a PCIe 5.0-capable CPU-connected slot and a PCIe 4.0 chipset-connected slot.
6. Does X870I AORUS PRO ICE support PCIe 5.0?
Yes. With compatible Ryzen 9000/7000 Series processors, its PCIe x16 slot supports PCIe 5.0 x16.
7. Does the motherboard support Wi-Fi 7?
Yes. It includes Realtek Wi-Fi 7 and Bluetooth 5.4.
8. Does X870I AORUS PRO ICE have USB4?
Yes. It includes one rear USB4 Type-C port with DisplayPort video output support.
9. What type of LAN does X870I AORUS PRO ICE have?
It features Realtek 2.5GbE LAN supporting up to 2.5Gbps wired networking.
10. What is the form factor of X870I AORUS PRO ICE?
It is a Mini-ITX motherboard measuring approximately 17 × 17 cm.
