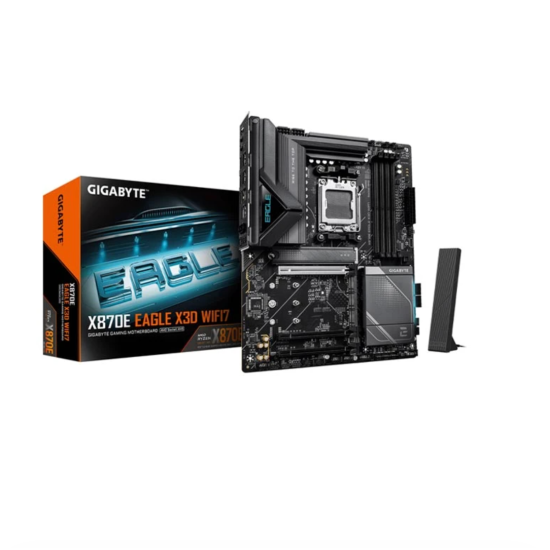

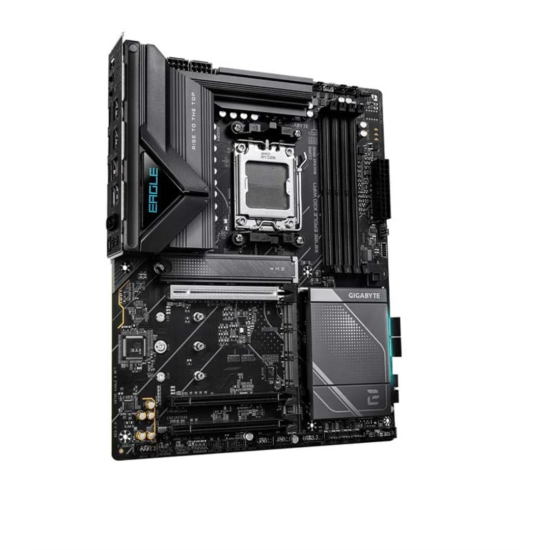

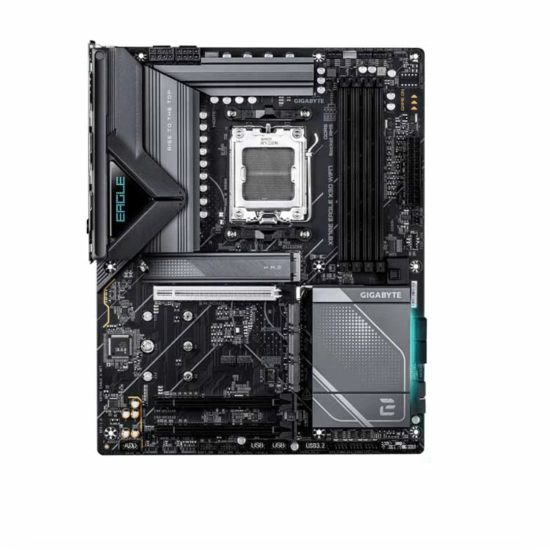

GIGABYTE X870E EAGLE X3D WIFI7 Motherboard
The GIGABYTE X870E EAGLE X3D WIFI7 is a high-performance AMD AM5 motherboard designed for modern gaming PCs, enthusiast builds, content creation, and demanding productivity workloads. The model is based on the AMD X870E chipset and supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. GIGABYTE lists the product as “X870E EAGLE X3D WIFI7”, with the shorthand “X870E EAGLE X WF7.”
AMD AM5 Platform and X870E Chipset
This motherboard uses the AMD Socket AM5 platform, providing compatibility with supported Ryzen processors. Its X870E chipset makes it suitable for users who want a feature-rich platform with modern PCIe connectivity, high-speed DDR5 memory, multiple NVMe SSD options, and advanced networking.
The board features a 16+2+2 digital VRM design, providing a robust power-delivery platform for high-performance Ryzen processors. GIGABYTE also equips it with thermal solutions designed to help manage VRM and M.2 storage temperatures.
DDR5 Memory Support up to 256GB
The X870E EAGLE X3D WIFI7 has four DDR5 DIMM slots and supports up to 256GB of system memory. It supports memory speeds up to DDR5-9000 (OC), depending on CPU, memory configuration, and supported modules. AMD EXPO and XMP memory profiles are supported for easier memory performance tuning.
PCIe 5.0 and Four M.2 Slots
For graphics and expansion, the primary PCI Express x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000/7000 processors. An additional PCIe 4.0 x4 slot and PCIe 3.0 x2 slot provide further expansion options.
Storage connectivity is another major strength. The motherboard provides four M.2 slots, including one CPU-connected PCIe 5.0 x4/x2 slot and three chipset-connected PCIe 4.0 x4/x2 slots. It also includes four SATA 6Gb/s ports and supports RAID configurations for NVMe and SATA storage.
Wi-Fi 7 and 5GbE Networking
For fast networking, the motherboard features Realtek 5GbE LAN, supporting 5Gbps, 2.5Gbps, 1Gbps and 100Mbps connections. Wireless connectivity is provided by Qualcomm Wi-Fi 7 QCNCM865, supporting 2.4GHz, 5GHz and 6GHz bands, along with Bluetooth 5.4 and 320MHz Wi-Fi 7 operation.
USB4 and High-Speed Connectivity

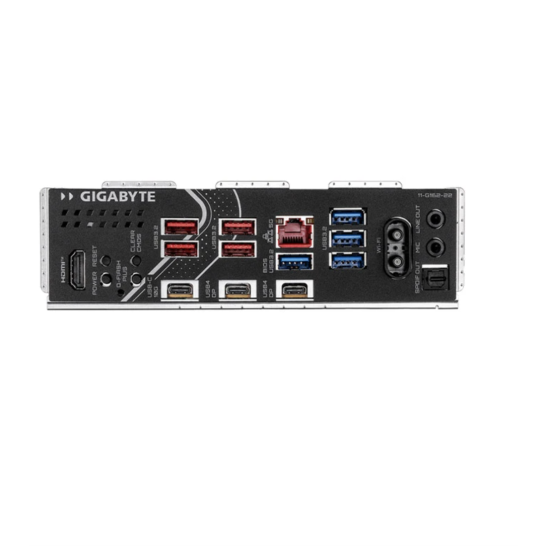

The rear I/O provides two USB4 Type-C ports with DisplayPort support, alongside additional USB 3.2 Gen 2 Type-A and Type-C connectivity. The motherboard also includes HDMI output, making it suitable for systems using compatible processor-integrated graphics.
Premium Audio and DIY-Friendly Features
For audio, the board uses the Realtek ALC1220 codec, supports multi-channel HD audio and includes an optical S/PDIF output. GIGABYTE also provides features such as Q-Flash Plus, Q-Flash, Smart Backup, GIGABYTE Control Center, EZ-Latch Plus and EZ-Latch Click, making system building, maintenance and upgrades easier.
Key Features
-
AMD Socket AM5 with Ryzen 9000/8000/7000 Series support
-
AMD X870E chipset
-
4× DDR5 DIMM slots, up to 256GB
-
DDR5 up to 9000 MT/s (OC)
-
PCIe 5.0 x16 graphics slot
-
4× M.2 slots with PCIe 5.0 and PCIe 4.0 support
-
4× SATA 6Gb/s ports
-
Realtek 5GbE LAN
-
Qualcomm Wi-Fi 7 and Bluetooth 5.4
-
Dual USB4 Type-C ports
-
Realtek ALC1220 audio
-
ATX 30.5 × 24.4cm form factor
Why Choose GIGABYTE X870E EAGLE X3D WIFI7?
The GIGABYTE X870E EAGLE X3D WIFI7 is a strong choice for users building a premium AMD Ryzen desktop with modern connectivity and upgrade flexibility. Its combination of X870E chipset, DDR5 memory support, PCIe 5.0, four M.2 slots, 5GbE LAN, Wi-Fi 7 and USB4 makes it well suited to high-end gaming, workstation and enthusiast PC builds.
Product specifications are based on GIGABYTE's official specifications and may vary according to processor, motherboard revision and system configuration.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE X870E EAGLE X3D WIFI7 support?
It supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series processors using the AM5 socket.
How much RAM does this motherboard support?
It supports up to 256GB of DDR5 memory across four DIMM slots.
What is the maximum supported DDR5 speed?
GIGABYTE specifies memory support up to DDR5-9000 (OC), depending on configuration and supported modules.
Does it support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000/7000 processors.
How many M.2 slots are available?
There are four M.2 slots, including one PCIe 5.0 slot and three PCIe 4.0 slots.
Does the X870E EAGLE X3D WIFI7 have Wi-Fi 7?
Yes. It features Qualcomm Wi-Fi 7 with support for 2.4GHz, 5GHz and 6GHz bands and 320MHz operation.
Does it support 5Gbps LAN?
Yes. It includes Realtek 5GbE LAN supporting up to 5Gbps wired networking.
Does it have USB4?
Yes. Two rear USB4 Type-C ports are provided with DisplayPort support.
What audio codec does it use?
The motherboard uses the Realtek ALC1220 audio codec and provides optical S/PDIF output.
What is the motherboard form factor?
The GIGABYTE X870E EAGLE X3D WIFI7 uses the standard ATX form factor, measuring 30.5 × 24.4cm.
