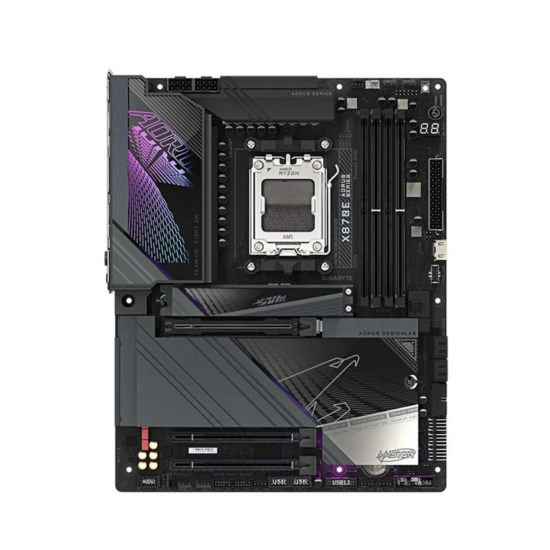

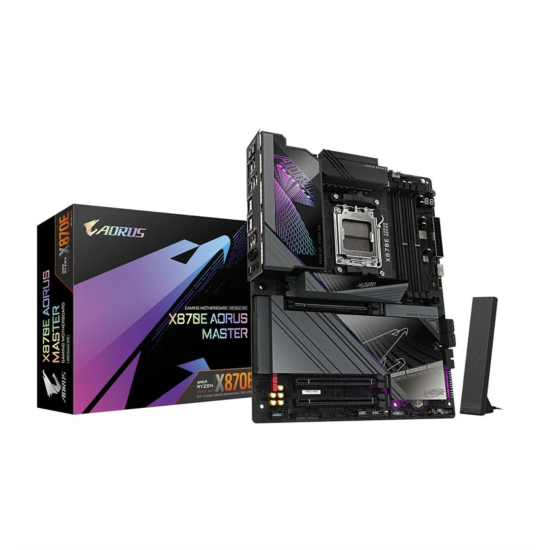

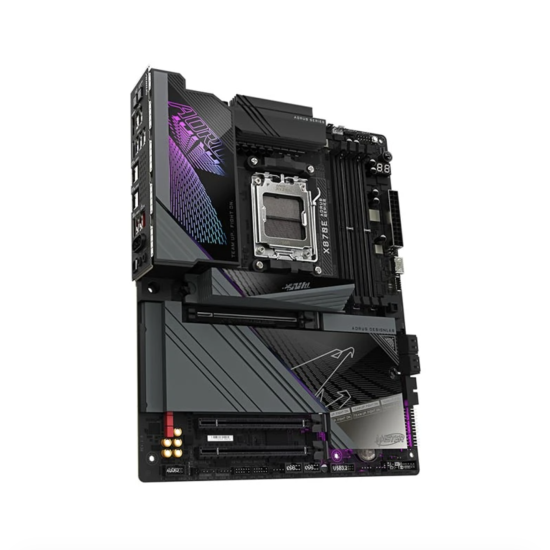

GIGABYTE X870E AORUS MASTER AMD AM5 DDR5 Motherboard
The GIGABYTE X870E AORUS MASTER is a premium ATX motherboard designed for high-performance AMD Ryzen desktop systems. Built on the AMD X870E chipset and featuring the AM5 socket, it supports AMD Ryzen 7000, 8000, and 9000 Series processors. With advanced power delivery, DDR5 memory support, multiple PCIe 5.0 interfaces, Wi-Fi 7, 5GbE LAN, USB4, and extensive storage connectivity, it is well suited for gaming PCs, workstation builds, and high-performance content creation systems.
AMD AM5 Platform and X870E Chipset
The X870E AORUS MASTER uses the AMD Socket AM5 platform and supports AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors, subject to the latest CPU support list and processor-specific limitations.
The AMD X870E chipset provides a modern platform for high-end desktop systems, offering support for advanced PCIe, DDR5 memory, USB4, high-speed networking, and next-generation storage.
4-Slot DDR5 Memory Support
The motherboard features four DDR5 DIMM slots with dual-channel memory architecture and supports up to 256GB of system memory using compatible modules.
It supports memory speeds up to DDR5-8600 MT/s through overclocking, along with AMD EXPO and Intel XMP memory profiles. Both ECC and non-ECC unbuffered DIMMs are supported, subject to CPU and memory configuration.
Powerful 16+2+2 VRM Design
GIGABYTE equips the X870E AORUS MASTER with a 16+2+2 phase digital VRM solution. The design includes 110A Smart Power Stages for VCORE, 80A SOC phases, an 8-layer PCB, premium chokes and capacitors, and an 8+8-phase parallel power design.
This power architecture is designed to provide stable power delivery for compatible high-performance AMD Ryzen processors and demanding workloads.
PCIe 5.0 Graphics and Expansion
The primary PCI Express slot supports PCIe 5.0 x16 with GIGABYTE's PCIe UD Slot X design. This provides a high-bandwidth interface for compatible graphics cards.
The motherboard also includes additional full-length PCIe slots operating at PCIe 4.0 x4 and PCIe 3.0 x4. The exact PCIe bandwidth available can vary depending on the installed CPU and M.2 configuration.
Four M.2 Slots for High-Speed Storage
The X870E AORUS MASTER provides four M.2 connectors, including three PCIe 5.0 x4 M.2 slots and one PCIe 4.0 x4 M.2 slot.
It also features four SATA 6Gb/s connectors, giving users multiple options for installing NVMe SSDs and SATA storage devices. NVMe RAID 0, RAID 1, RAID 5, and RAID 10 are supported under specified processor configurations, while SATA RAID 0, 1, and 10 are supported.
Wi-Fi 7 and 5GbE Networking

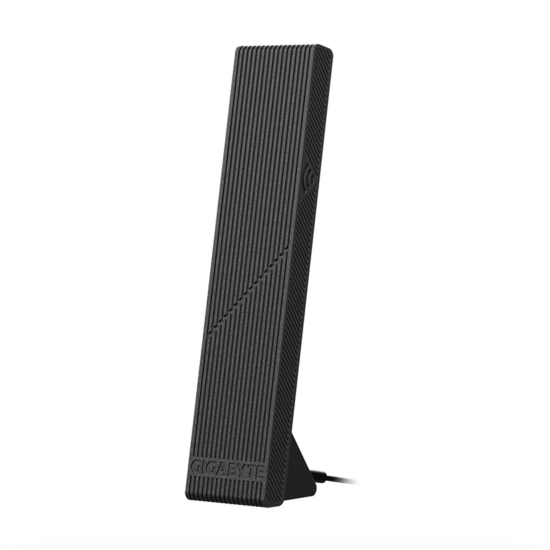

For high-speed networking, the motherboard features 5GbE LAN using a Realtek 5GbE controller. It also includes Qualcomm Wi-Fi 7 with support for 2.4GHz, 5GHz, and 6GHz bands.
Wi-Fi 7 features include support for 320MHz channels, 4K-QAM, and Multi-Link Operation (MLO). Bluetooth connectivity is also included.
Dual USB4 Connectivity

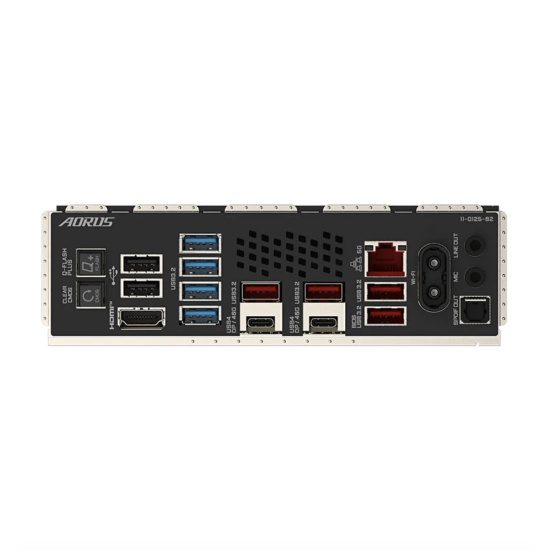

The X870E AORUS MASTER provides two USB4 Type-C ports on the rear I/O, with transfer speeds of up to 40Gbps and DisplayPort Alt Mode support.
It also provides multiple USB 3.2 Gen 2 and USB 3.2 Gen 1 ports, along with internal USB headers for front-panel connectivity.
Premium Audio
The motherboard uses a Realtek ALC1220 audio codec and supports high-definition multi-channel audio. It also features premium-grade audio capacitors and supports DTS:X Ultra for compatible systems.
An optical S/PDIF output is available for compatible digital audio equipment.
Advanced Thermal Design
GIGABYTE incorporates VRM Thermal Armor Advanced, an integrated heatpipe, 12 W/mK thermal pads, and M.2 Thermal Guard solutions to help manage heat around critical motherboard components.

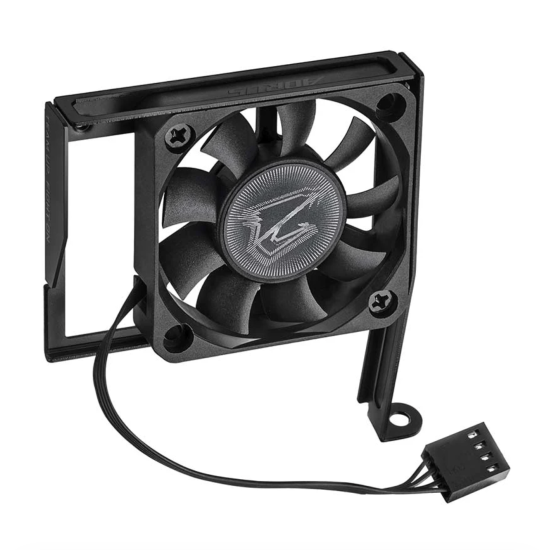

The board also includes Smart Fan 6, providing multiple PWM/DC fan headers and fan-control options for customized cooling configurations.
DIY-Friendly Features
The X870E AORUS MASTER includes several installation and maintenance features such as EZ-Latch Plus, screwless M.2 heatsinks, M.2 EZ-Match, WIFI EZ-Plug, Q-Flash Plus, Clear CMOS, onboard power and reset buttons, and an EZ-Debug zone.
These features are designed to make PC building, component installation, BIOS updates, and troubleshooting more convenient.
Why Choose GIGABYTE X870E AORUS MASTER?
The GIGABYTE X870E AORUS MASTER is designed for users who want a feature-rich AM5 motherboard for high-end AMD Ryzen systems. Its combination of X870E chipset, DDR5-8600 OC support, 16+2+2 VRM design, PCIe 5.0 x16, three PCIe 5.0 M.2 slots, Wi-Fi 7, 5GbE LAN, dual USB4, and premium audio makes it suitable for powerful gaming and workstation builds.
For customers searching for a GIGABYTE X870E motherboard in Bangladesh, the X870E AORUS MASTER offers an advanced platform for current-generation AMD Ryzen processors and high-speed components.
FAQ (Frequently Asked Questions)
1. What chipset does the GIGABYTE X870E AORUS MASTER use?
It uses the AMD X870E chipset.
2. Which processors are compatible with X870E AORUS MASTER?
It supports AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket.
3. How much RAM does the X870E AORUS MASTER support?
It supports up to 256GB of DDR5 memory across four DIMM slots.
4. What is the maximum supported DDR5 speed?
The motherboard supports DDR5 speeds up to 8600 MT/s through overclocking, depending on CPU and memory configuration.
5. How many M.2 slots does this motherboard have?
It has four M.2 slots, including three PCIe 5.0 x4 slots and one PCIe 4.0 x4 slot.
6. Does X870E AORUS MASTER support PCIe 5.0?
Yes. The primary graphics slot supports PCIe 5.0 x16, and three M.2 slots support PCIe 5.0 x4 SSDs.
7. Does the motherboard support Wi-Fi 7?
Yes. It includes Wi-Fi 7 and Bluetooth connectivity.
8. Does X870E AORUS MASTER have USB4?
Yes. It provides two rear USB4 Type-C ports supporting up to 40Gbps and DisplayPort Alt Mode.
9. What type of LAN does the motherboard support?
It features 5GbE LAN for high-speed wired networking.
10. What is the form factor of X870E AORUS MASTER?
The motherboard uses the standard ATX form factor, measuring approximately 30.5 × 24.4 cm.
