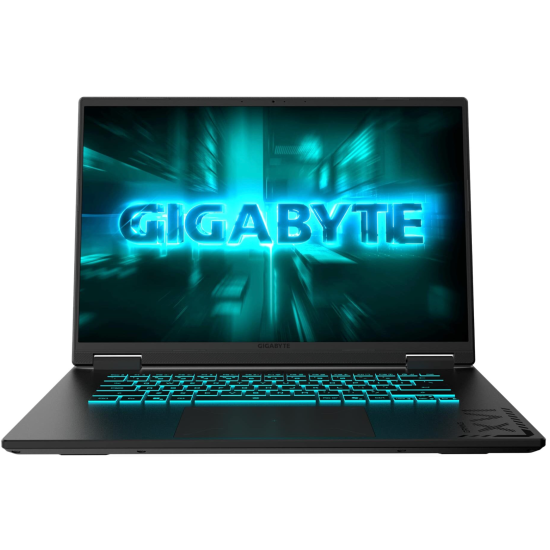

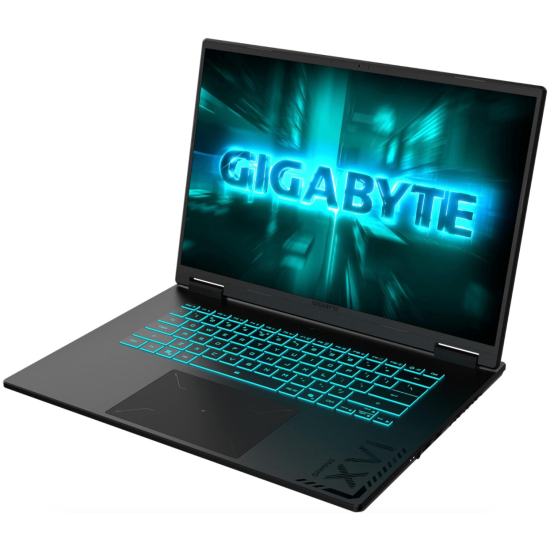

GIGABYTE Gaming A16 GA63H Ryzen 7 RTX 5060 Laptop
The GIGABYTE Gaming A16 GA63H 3VHK3BD is a performance-focused gaming laptop designed for gamers, creators, students and professionals who need strong processing power and dedicated graphics in a practical 16-inch chassis. This configuration combines the AMD Ryzen 7 260 processor, NVIDIA GeForce RTX 5060 Laptop GPU with 8GB GDDR7, 16GB DDR5 memory and a 512GB PCIe Gen4 NVMe SSD. It also features a 16-inch WUXGA 165Hz IPS display, 76Wh battery, RGB backlit keyboard and Windows 11 Home. The GA63H family is officially specified with Ryzen 7 260 and RTX 5060 graphics, along with multiple display configurations depending on SKU.
AMD Ryzen 7 260 Processor
The laptop is powered by the AMD Ryzen 7 260, featuring 8 cores and 16 threads with a maximum boost clock of up to 5.1GHz. This processor provides strong performance for gaming, multitasking, programming, productivity applications and content creation.
The Ryzen 7 260 works together with 16GB DDR5 memory to provide responsive performance when running multiple applications simultaneously. The Gaming A16 platform supports two SO-DIMM slots and up to 64GB DDR5 memory, providing an upgrade path for users who require additional memory in the future.
NVIDIA GeForce RTX 5060 8GB GDDR7 Graphics
For dedicated graphics performance, the GIGABYTE Gaming A16 GA63H features an NVIDIA GeForce RTX 5060 Laptop GPU with 8GB GDDR7 memory. The RTX 5060 is designed for modern gaming, ray-traced graphics, AI-enhanced workloads and GPU-accelerated creative applications.
The laptop also incorporates a MUX Switch, allowing the system to switch between integrated and discrete graphics modes. This provides flexibility between improved battery efficiency and higher graphics performance when gaming or running demanding applications.
16-Inch WUXGA 165Hz IPS Display
The specified 3VHK3BD configuration features a 16-inch IPS WUXGA display with 1920 × 1200 resolution and a 165Hz refresh rate. Its 16:10 aspect ratio provides additional vertical screen space compared with conventional 16:9 Full HD displays, making it useful for both gaming and productivity.
The WUXGA panel is listed at approximately 300 nits typical brightness. Some other GA63H configurations use a higher-resolution 2560 × 1600 WQXGA 165Hz panel, so the WUXGA specification should be retained for this particular configuration.
16GB DDR5 5200MHz Memory
This configuration comes with 16GB DDR5 RAM at 5200MHz, providing fast system responsiveness for gaming, multitasking and demanding applications.
The GA63H platform uses two SO-DIMM slots and supports memory expansion up to 64GB. This makes the laptop suitable for users who may later need additional RAM for professional software, virtual machines, content creation or heavier multitasking.
512GB PCIe Gen4 NVMe SSD
Storage is provided by a 512GB PCIe Gen4 NVMe SSD, delivering fast boot times, application loading and file access. The platform provides two M.2 PCIe Gen4 slots, allowing users to expand storage when additional capacity is required.
GIGABYTE lists support for up to 4TB of PCIe NVMe M.2 storage across the supported slots, although actual upgrade compatibility and supplied storage can vary by regional configuration.

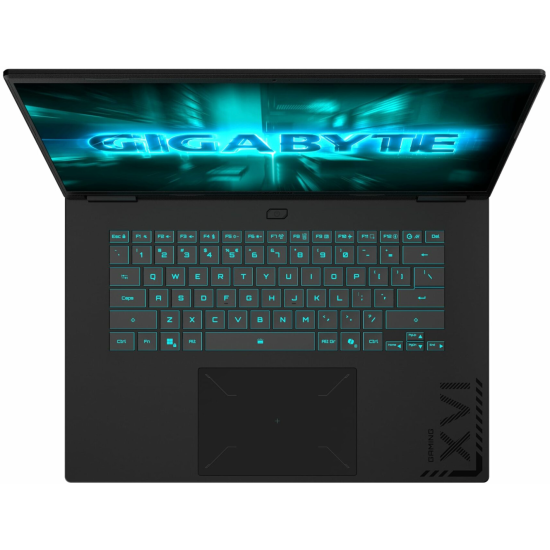

15-Color Backlit Gaming Keyboard
The supplied configuration includes a 15-color backlit keyboard, providing enhanced visibility in low-light environments. The GA63H platform uses a gaming-oriented keyboard design with up to 1.7mm key travel and N-key support.
The keyboard complements the Black Steel chassis and gives the laptop a distinctive gaming appearance while remaining suitable for everyday typing and productivity.
Wi-Fi 6E and Modern Connectivity
The Gaming A16 GA63H supports Wi-Fi 6E 802.11ax 2×2 and Bluetooth 5.2, providing modern wireless connectivity for gaming networks, wireless headphones, mice, keyboards and other accessories.
For wired connections, it includes Gigabit Ethernet. The laptop also provides HDMI 2.1, USB Type-A and USB4 Type-C connectivity, with the USB4 port supporting DisplayPort 1.4 and Power Delivery 3.0.

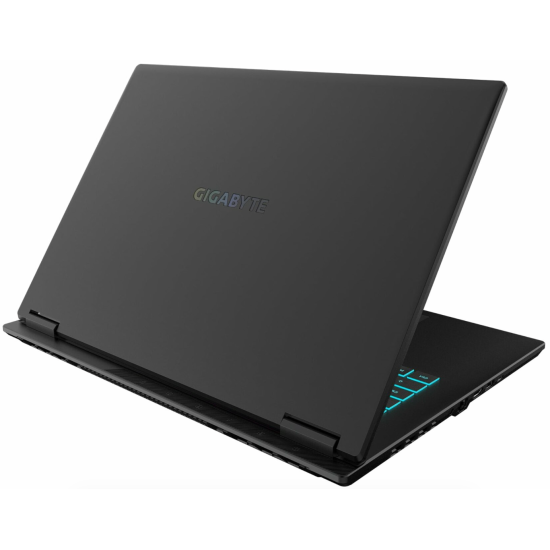

76Wh Battery and Black Steel Design
The laptop features a 76Wh Li-Polymer battery, providing substantial battery capacity for a performance gaming notebook. A 150W AC adapter is used for powering the system and charging the battery.
With dimensions of approximately 358.3 × 262.5 × 19.45–22.99mm and a weight of around 2.2kg, the Gaming A16 offers a practical balance between performance and portability. Its Black Steel finish gives it a modern gaming aesthetic.
Cooling, Audio and Webcam
GIGABYTE's Gaming A16 platform incorporates WINDFORCE cooling and a 0dB ambience mode to help manage system thermals while keeping noise lower during lighter workloads. The laptop also includes a MUX Switch for graphics control.
For entertainment and gaming, it features 2 × 2W speakers with Dolby Atmos. The laptop is also equipped with an FHD 1080p IR webcam supporting Windows Hello facial authentication, making it useful for online meetings and secure Windows login.
Key Features
-
Processor: AMD Ryzen 7 260, 8-Core/16-Thread, Up to 5.1GHz
-
Graphics: NVIDIA GeForce RTX 5060 Laptop GPU, 8GB GDDR7
-
Display: 16" IPS WUXGA 1920×1200, 16:10
-
Refresh Rate: 165Hz
-
Memory: 16GB DDR5 5200MHz
-
Storage: 512GB PCIe Gen4 NVMe SSD
-
Keyboard: 15-Color Backlit Gaming Keyboard
-
Wireless: Wi-Fi 6E and Bluetooth 5.2
-
Networking: Gigabit Ethernet
-
Webcam: FHD 1080p IR Webcam with Windows Hello
-
Audio: 2 × 2W Speakers with Dolby Atmos
-
Battery: 76Wh Li-Polymer
-
Operating System: Windows 11 Home
-
Color: Black Steel
-
Weight: Approximately 2.2kg
-
Warranty: 2 Years
Why Choose GIGABYTE Gaming A16 GA63H?
The GIGABYTE Gaming A16 GA63H is a strong choice for users who want the combination of an AMD Ryzen 7 processor and the newer NVIDIA RTX 5060 8GB GDDR7 graphics platform. Its 8-core/16-thread Ryzen 7 260 processor provides capable CPU performance, while the dedicated RTX 5060 is designed for modern gaming and GPU-accelerated applications.
The 16-inch 165Hz WUXGA IPS display, 16GB DDR5 memory, PCIe Gen4 NVMe storage, 76Wh battery, Wi-Fi 6E and MUX Switch give the laptop a well-rounded feature set for gaming, programming, study, creative work and everyday productivity. Its approximately 2.2kg Black Steel chassis also provides a reasonable balance between performance and portability.
Configuration note: GIGABYTE offers the Gaming A16 GA63H/3VH family with different display, storage and operating-system configurations. The specifications above are based on the supplied 3VHK3BD configuration: Ryzen 7 260 + RTX 5060 8GB GDDR7 + 16GB DDR5 + 512GB Gen4 NVMe + 16-inch WUXGA 165Hz + Windows 11 Home.
FAQ (Frequently Asked Questions)
What processor does the GIGABYTE Gaming A16 GA63H use?
This configuration uses the AMD Ryzen 7 260, with 8 cores, 16 threads and up to 5.1GHz boost speed.
What graphics card does the Gaming A16 GA63H have?
It features the NVIDIA GeForce RTX 5060 Laptop GPU with 8GB GDDR7 graphics memory.
What is the display resolution of the GIGABYTE Gaming A16 GA63H?
The specified configuration has a 16-inch IPS WUXGA display with 1920 × 1200 resolution.
Does the Gaming A16 GA63H have a 165Hz display?
Yes. This configuration features a 165Hz WUXGA IPS display.
How much RAM does the Gaming A16 GA63H have?
It comes with 16GB DDR5 RAM running at 5200MHz.
Can the RAM be upgraded?
Yes. The platform has two SO-DIMM slots and supports up to 64GB DDR5 memory.
What storage does the GIGABYTE Gaming A16 GA63H have?
This configuration includes a 512GB PCIe Gen4 NVMe SSD and supports additional M.2 storage expansion.
Does the Gaming A16 GA63H support Wi-Fi 6E?
Yes. It supports Wi-Fi 6E 802.11ax 2×2 and Bluetooth 5.2.
Does it have a backlit keyboard?
Yes. The supplied configuration features a 15-color backlit keyboard.
How large is the battery?
The laptop has a 76Wh Li-Polymer battery.
How much does the GIGABYTE Gaming A16 GA63H weigh?
The specified configuration weighs approximately 2.2kg.
Is the GIGABYTE Gaming A16 GA63H good for gaming?
Yes. The combination of Ryzen 7 260, RTX 5060 8GB GDDR7, 16GB DDR5 and a 165Hz display makes it well suited for modern gaming and demanding applications.
