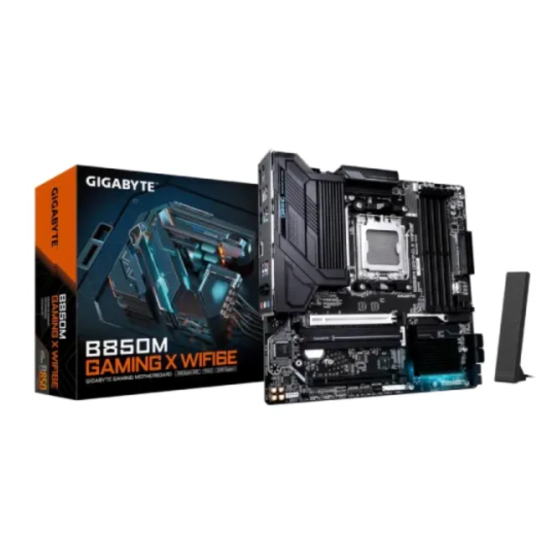

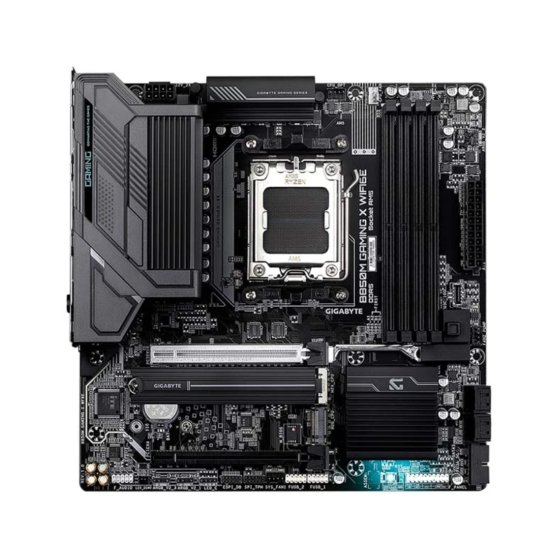

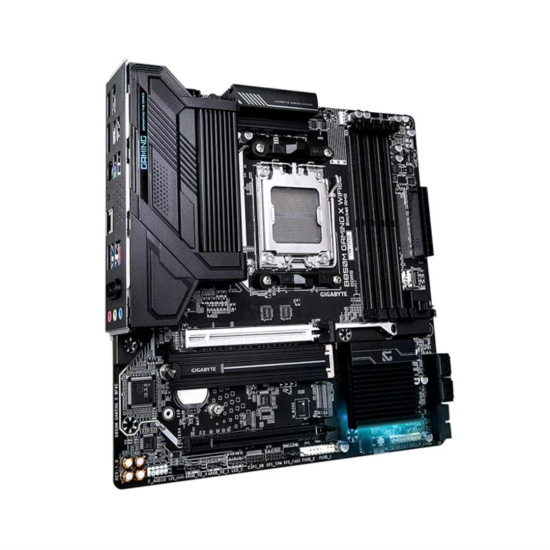

GIGABYTE B850M GAMING X WIFI6E AM5 DDR5 Motherboard
The GIGABYTE B850M GAMING X WIFI6E is a Micro ATX AMD AM5 motherboard designed for modern gaming PCs, compact performance systems, and high-performance desktop builds. Also identified as B850M GAMING X WF6E, it uses the AMD B850 chipset and supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. The motherboard combines DDR5 memory, PCIe 5.0 graphics, dual M.2 storage, 2.5GbE LAN, and Wi-Fi 6E connectivity in a compact 24.4 × 24.4 cm form factor.
AMD AM5 Platform and B850 Chipset
The motherboard uses the AMD Socket AM5 platform and supports Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series desktop processors. Its 10+2+2 Twin Digital VRM design, 6-layer PCB, 2X copper PCB, premium chokes, and capacitors provide a solid foundation for modern AMD gaming and performance-oriented systems.
DDR5 Memory Support up to 256GB
The B850M GAMING X WIFI6E features four DDR5 DIMM slots with dual-channel memory architecture and supports up to 256GB of system memory. GIGABYTE specifies memory support up to DDR5-8200 MT/s through overclocking, depending on the CPU, memory configuration, and installed modules. AMD EXPO and Intel XMP profiles are also supported.
PCIe 5.0 Graphics Support
The primary full-length PCIe x16 slot supports PCIe 5.0 x16 with compatible AMD Ryzen 9000 and Ryzen 7000 processors. Ryzen 8000 processors provide PCIe 4.0 connectivity according to the specific CPU. A secondary PCIe x16-sized slot operates at PCIe 3.0 x4, providing additional expansion flexibility.
Dual M.2 NVMe Storage
For high-speed storage, the motherboard provides two M.2 slots. The primary CPU-connected M.2 slot supports PCIe 5.0 x4/x2, while the second supports PCIe 4.0 x4/x2 depending on the processor. Four SATA 6Gb/s connectors are also available for SATA SSDs and hard drives.
GIGABYTE also provides M.2 Thermal Guard and EZ-Latch features to simplify SSD installation and help manage M.2 drive temperatures.
Wi-Fi 6E and 2.5GbE LAN
Integrated Realtek Wi-Fi 6E RTL8852CE supports 2.4GHz, 5GHz, and 6GHz wireless bands with 160MHz operation. The wireless module also provides Bluetooth 5.3 connectivity.
For wired networking, the motherboard features Realtek 2.5GbE LAN, supporting 2.5Gbps, 1Gbps, and 100Mbps connections.
USB and Display Connectivity
The rear I/O includes USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 and USB 2.0/1.1 ports. Display connectivity includes one HDMI 2.1 port and two DisplayPort 1.4 outputs, supporting up to triple-display configurations when supported by the processor's integrated graphics.
Gaming and DIY-Friendly Features
GIGABYTE includes VRM Thermal Armor Advanced, M.2 Thermal Guard, Smart Fan 6, Q-Flash Plus, PCIe EZ-Latch Plus, M.2 EZ-Latch Plus, M.2 EZ-Latch Click, and WIFI EZ-Plug. These features make the motherboard easier to install, configure, upgrade, and maintain.
Key Features
-
AMD Socket AM5 for Ryzen 9000/8000/7000 Series processors
-
AMD B850 chipset
-
Micro ATX 24.4 × 24.4cm form factor
-
4× DDR5 DIMM slots, up to 256GB
-
DDR5 up to 8200 MT/s (OC)
-
PCIe 5.0 x16 graphics slot
-
2× M.2 slots with PCIe 5.0 and PCIe 4.0 support
-
4× SATA 6Gb/s connectors
-
Realtek 2.5GbE LAN
-
Realtek Wi-Fi 6E and Bluetooth 5.3
-
HDMI 2.1 and 2× DisplayPort 1.4
-
USB 3.2 Gen 2 Type-C
-
Q-Flash Plus and Smart Fan 6
Why Choose GIGABYTE B850M GAMING X WIFI6E?
The GIGABYTE B850M GAMING X WIFI6E is a strong option for users who want to build a modern AMD Ryzen gaming PC in a Micro ATX form factor. Its combination of AM5 CPU support, DDR5 memory, PCIe 5.0, dual M.2 storage, 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, and modern USB connectivity makes it suitable for gaming, productivity, and compact performance builds.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE B850M GAMING X WIFI6E support?
It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors using the AM5 socket.
How much RAM does the motherboard support?
It supports up to 256GB of DDR5 memory through four DIMM slots.
What is the maximum DDR5 speed?
GIGABYTE specifies DDR5 speeds up to 8200 MT/s (OC), depending on CPU and memory configuration.
Does it support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors.
How many M.2 slots are available?
There are two M.2 slots, including PCIe 5.0 and PCIe 4.0 support.
Does the motherboard support Wi-Fi 6E?
Yes. It features Realtek Wi-Fi 6E with 2.4GHz, 5GHz, and 6GHz band support.
Does it have 2.5GbE LAN?
Yes. The motherboard includes Realtek 2.5GbE LAN.
What Bluetooth version does it support?
The integrated wireless module supports Bluetooth 5.3.
What is the motherboard form factor?
It is a Micro ATX motherboard measuring 24.4 × 24.4cm.
Is B850M GAMING X WF6E the same model?
Yes. B850M GAMING X WF6E is GIGABYTE's abbreviated model designation for the B850M GAMING X WIFI6E.
