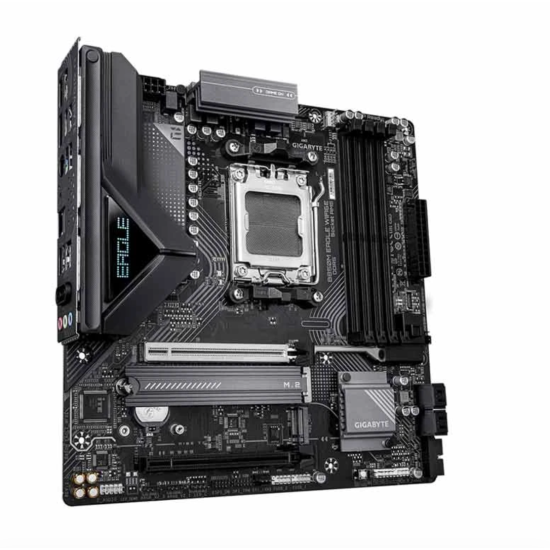

GIGABYTE B850M EAGLE WIFI6E AM5 DDR5 Motherboard
The GIGABYTE B850M EAGLE WIFI6E is a Micro ATX AMD AM5 motherboard designed for modern gaming PCs, compact desktops, and performance-focused workstation builds. Also identified by GIGABYTE as B850M EAGLE WF6E, it is based on the AMD B850 chipset and supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. The motherboard combines DDR5 memory, PCIe 5.0 graphics support, dual M.2 storage, 2.5GbE networking, and Wi-Fi 6E connectivity in a compact 24.4 × 24.4 cm design.
AMD AM5 Platform and B850 Chipset
The B850M EAGLE WIFI6E uses the AMD Socket AM5 platform and supports compatible Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. The AMD B850 chipset provides a current-generation platform suitable for gaming, productivity, content creation, and everyday desktop computing.
DDR5 Memory Support up to 256GB
The motherboard features four DDR5 DIMM slots with dual-channel memory architecture and supports up to 256GB of system memory. GIGABYTE specifies DDR5 memory speeds up to 8200 MT/s (OC), depending on the CPU, memory configuration, and installed modules. It also supports AMD EXPO and Intel XMP memory profiles for compatible high-performance DDR5 kits.
PCIe 5.0 Graphics Support
The primary PCIe x16 slot is connected directly to the CPU and supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 Series processors. With supported Ryzen 8000 processors, the available PCIe mode depends on the specific processor. A secondary PCIe x16-sized slot operates at PCIe 3.0 x4 through the chipset.
Dual M.2 NVMe Storage
For high-speed storage, the B850M EAGLE WIFI6E provides two M.2 slots. The primary M.2 slot supports PCIe 5.0 x4/x2 with compatible Ryzen 9000/7000 processors, while the second M.2 slot supports PCIe 4.0 connectivity.
The motherboard also includes four SATA 6Gb/s connectors, allowing users to connect SATA SSDs and hard drives. RAID 0, RAID 1, RAID 5, and RAID 10 are supported for compatible NVMe storage, while SATA storage supports RAID 0, RAID 1, and RAID 10.
Wi-Fi 6E and 2.5GbE LAN
Integrated Realtek Wi-Fi 6E RTL8852CE provides wireless connectivity across the 2.4GHz, 5GHz, and 6GHz bands, with support for 160MHz wireless operation. The motherboard also includes Bluetooth 5.3.
For wired networking, GIGABYTE provides a Realtek 2.5GbE LAN controller, supporting 2.5Gbps, 1Gbps, and 100Mbps network connections. This makes the board suitable for fast local networking, online gaming, large file transfers, and compatible broadband connections.
HDMI 2.1 and DisplayPort 1.4
The motherboard provides one HDMI 2.1 port supporting up to 4096 × 2160 at 60Hz and two DisplayPort 1.4 outputs supporting up to 3840 × 2160 at 144Hz. It supports up to three displays simultaneously when the installed processor provides the required integrated graphics capability.
USB Connectivity and Q-Flash Plus
The rear I/O includes a USB 3.2 Gen 2 Type-C port, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 ports, and USB 2.0/1.1 connectivity. Internal headers provide additional USB expansion for compatible PC cases.
GIGABYTE also provides Q-Flash Plus, Q-Flash, Smart Backup, and GIGABYTE Control Center, making BIOS updates and system management more convenient.
Compact Micro ATX Design
Measuring 24.4 × 24.4 cm, the B850M EAGLE WIFI6E uses the Micro ATX form factor. It is suitable for users who want a relatively compact PC while retaining four RAM slots, multiple storage interfaces, a full-size graphics slot, and modern networking features.
Key Features
-
AMD Socket AM5 for Ryzen 9000/8000/7000 Series processors
-
AMD B850 chipset
-
Micro ATX 24.4 × 24.4cm form factor
-
4× DDR5 DIMM slots, up to 256GB
-
DDR5 up to 8200 MT/s (OC)
-
PCIe 5.0 x16 graphics slot
-
2× M.2 slots with PCIe 5.0 and PCIe 4.0 support
-
4× SATA 6Gb/s ports
-
Realtek 2.5GbE LAN
-
Realtek Wi-Fi 6E
-
Bluetooth 5.3
-
HDMI 2.1 and 2× DisplayPort 1.4
-
USB 3.2 Gen 2 Type-C
-
Q-Flash Plus and Smart Backup
Why Choose GIGABYTE B850M EAGLE WIFI6E?
The GIGABYTE B850M EAGLE WIFI6E is a practical choice for users building a modern AMD Ryzen PC in a Micro ATX format. Its combination of AM5 CPU support, DDR5 memory, PCIe 5.0 graphics, dual M.2 storage, 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, and modern display connectivity provides a balanced platform for gaming, productivity, and everyday performance computing.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE B850M EAGLE WIFI6E support?
It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors using the AM5 socket.
How much RAM does the motherboard support?
It supports up to 256GB of DDR5 memory through four DIMM slots.
What is the maximum DDR5 speed?
The motherboard supports DDR5 speeds up to 8200 MT/s (OC), depending on the CPU and memory configuration.
Does it support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors.
How many M.2 slots are available?
There are two M.2 slots, with PCIe 5.0 and PCIe 4.0 support.
Does the motherboard support Wi-Fi 6E?
Yes. It features Realtek Wi-Fi 6E with 2.4GHz, 5GHz, and 6GHz band support.
Does it have 2.5GbE LAN?
Yes. The motherboard includes Realtek 2.5GbE LAN.
What Bluetooth version does it support?
The integrated wireless module supports Bluetooth 5.3.
What is the motherboard form factor?
The B850M EAGLE WIFI6E is a Micro ATX motherboard measuring 24.4 × 24.4cm.
Is B850M EAGLE WF6E the same model?
Yes. B850M EAGLE WF6E is GIGABYTE's abbreviated designation for the B850M EAGLE WIFI6E motherboard.
