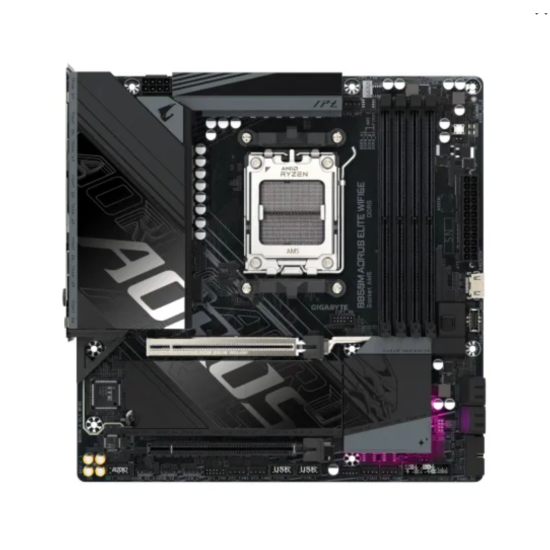

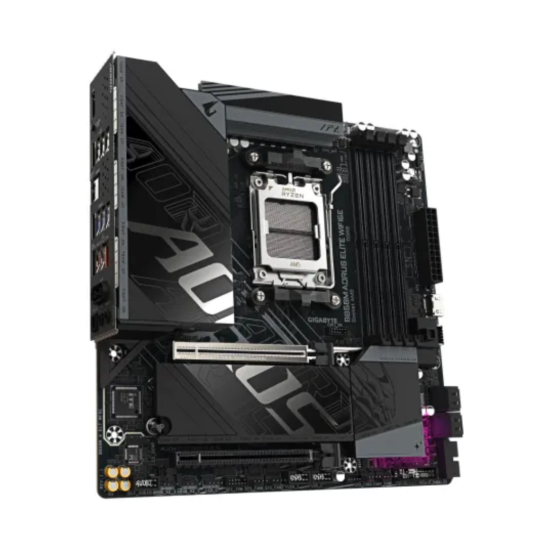

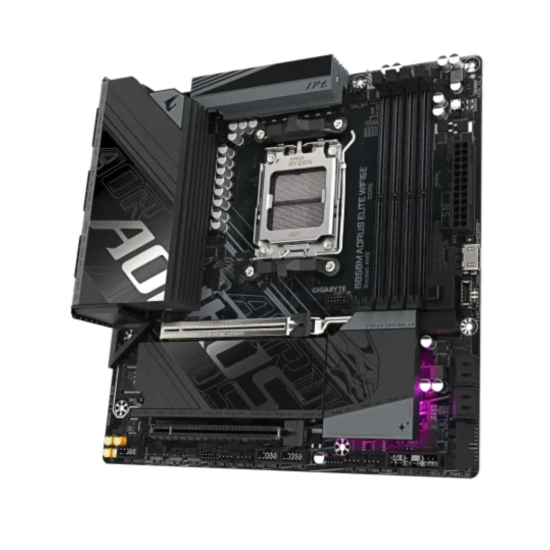

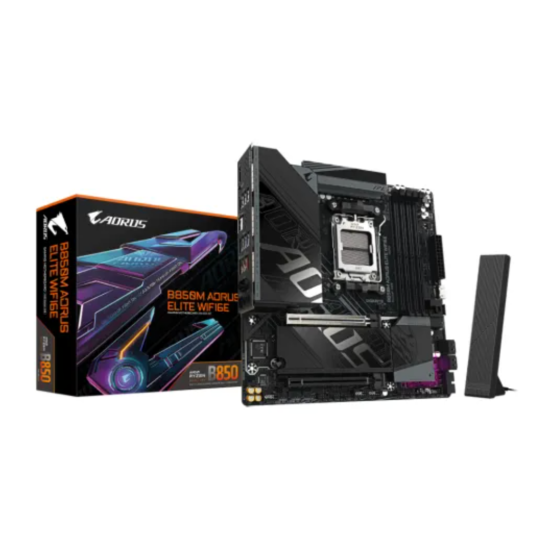

GIGABYTE B850M AORUS ELITE WIFI6E AM5 DDR5 Motherboard
The GIGABYTE B850M AORUS ELITE WIFI6E is a Micro ATX AMD AM5 motherboard designed for modern gaming PCs, compact performance desktops, and productivity-focused builds. Based on the AMD B850 chipset, it supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. It combines high-speed DDR5 memory, PCIe 5.0 graphics support, dual M.2 storage, 2.5GbE LAN, and Wi-Fi 6E in a compact 24.4 × 24.4 cm form factor. GIGABYTE identifies this model as B850M A ELT WF6E.
AMD AM5 Platform and B850 Chipset
The motherboard uses the AMD Socket AM5 platform and supports Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. The AMD B850 chipset provides a modern platform for gaming, content creation, office applications, and high-performance desktop computing.
Its Micro ATX design makes it suitable for users who want a smaller PC footprint without moving to the more restrictive Mini-ITX platform.
DDR5 Memory Support up to 256GB
The B850M AORUS ELITE WIFI6E features four DDR5 DIMM slots and supports up to 256GB of system memory. GIGABYTE specifies support for DDR5 speeds up to 8200 MT/s (OC), depending on the CPU, memory configuration, and installed modules.
The motherboard also supports AMD EXPO and Intel XMP memory profiles, allowing compatible high-speed DDR5 modules to be configured more conveniently.
PCIe 5.0 Graphics Support
The primary PCI Express x16 slot is directly connected to the CPU and supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors. Ryzen 8000 processors provide PCIe 4.0 connectivity according to the specific CPU model.
A secondary PCIe x16-sized slot operates at PCIe 3.0 x4, providing additional expansion flexibility.
Dual M.2 NVMe Storage
For high-speed storage, the motherboard provides two M.2 slots. The primary M.2 slot supports PCIe 5.0 x4/x2 with compatible Ryzen 9000/7000 processors, while the second M.2 slot supports PCIe 4.0 connectivity.
Four SATA 6Gb/s ports are also available for additional SATA SSDs and hard drives. The motherboard supports RAID configurations for compatible NVMe and SATA storage devices.
Wi-Fi 6E and 2.5GbE LAN
Integrated Realtek Wi-Fi 6E provides wireless connectivity across the 2.4GHz, 5GHz, and 6GHz bands, with support for 160MHz wireless operation. The wireless module also provides Bluetooth 5.3 connectivity.
For wired networking, the motherboard features Realtek 2.5GbE LAN, supporting network speeds up to 2.5Gbps.
USB and Display Connectivity

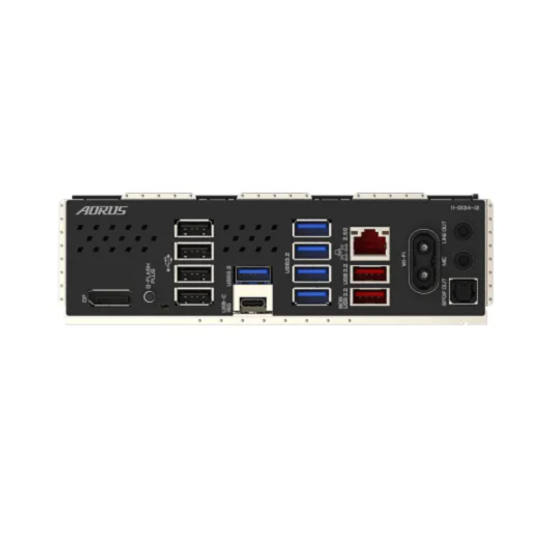

The rear I/O includes a USB Type-C port with USB 3.2 Gen 2, two USB 3.2 Gen 2 Type-A ports, five USB 3.2 Gen 1 ports, and four USB 2.0 ports.
For display output, the motherboard provides DisplayPort 1.4, supporting up to 3840 × 2160 at 144Hz when supported by the processor's integrated graphics. A front HDMI connector is also available.
Audio and Practical Features
Audio connectivity includes support for multi-channel HD audio and optical S/PDIF output. The exact onboard audio codec differs by motherboard revision: GIGABYTE specifies a Realtek audio codec for Rev. 1.0 and Realtek ALC1220 for Rev. 1.1.
For system management and maintenance, the motherboard supports Q-Flash, Q-Flash Plus, Smart Backup, GIGABYTE Control Center, fan monitoring, and fan-speed control.
Key Features
-
AMD Socket AM5 for Ryzen 9000/8000/7000 Series processors
-
AMD B850 chipset
-
Micro ATX 24.4 × 24.4cm form factor
-
4× DDR5 DIMM slots, up to 256GB
-
DDR5 up to 8200 MT/s (OC)
-
PCIe 5.0 x16 graphics slot
-
2× M.2 slots with PCIe 5.0 and PCIe 4.0 support
-
4× SATA 6Gb/s ports
-
Realtek 2.5GbE LAN
-
Realtek Wi-Fi 6E
-
Bluetooth 5.3
-
USB 3.2 Gen 2 Type-C
-
DisplayPort 1.4
-
Q-Flash Plus and Smart Backup support
Why Choose GIGABYTE B850M AORUS ELITE WIFI6E?
The GIGABYTE B850M AORUS ELITE WIFI6E is a well-balanced choice for users looking to build a modern AMD Ryzen PC in a Micro ATX form factor. Its combination of AM5 CPU support, DDR5 memory, PCIe 5.0, dual M.2 storage, 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.3 makes it suitable for gaming, productivity, and compact performance builds.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE B850M AORUS ELITE WIFI6E support?
It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors using the AM5 socket.
How much RAM does this motherboard support?
It supports up to 256GB of DDR5 memory through four DIMM slots.
What is the maximum DDR5 speed?
The motherboard supports DDR5 speeds up to 8200 MT/s (OC), depending on the CPU and memory configuration.
Does it support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors.
How many M.2 slots are available?
There are two M.2 slots, including PCIe 5.0 and PCIe 4.0 support.
Does the motherboard support Wi-Fi 6E?
Yes. It features Realtek Wi-Fi 6E with 2.4GHz, 5GHz, and 6GHz band support.
Does it have 2.5GbE LAN?
Yes. It includes a Realtek 2.5GbE LAN controller.
What Bluetooth version does it support?
The integrated wireless module supports Bluetooth 5.3.
What is the motherboard form factor?
The B850M AORUS ELITE WIFI6E is a Micro ATX motherboard measuring 24.4 × 24.4cm.
Does it support Q-Flash Plus?
Yes. GIGABYTE provides Q-Flash Plus for convenient BIOS updating.
