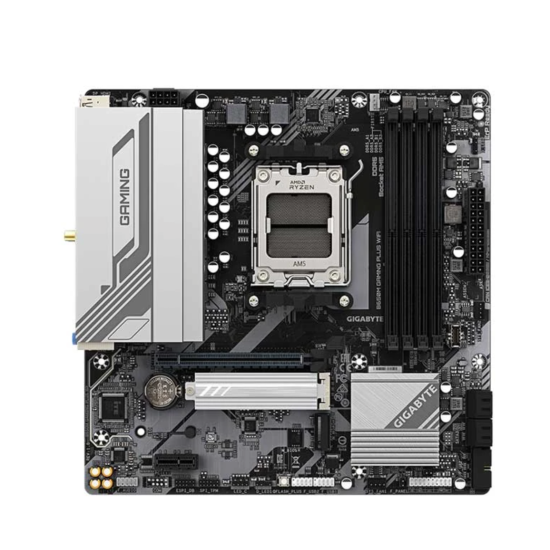

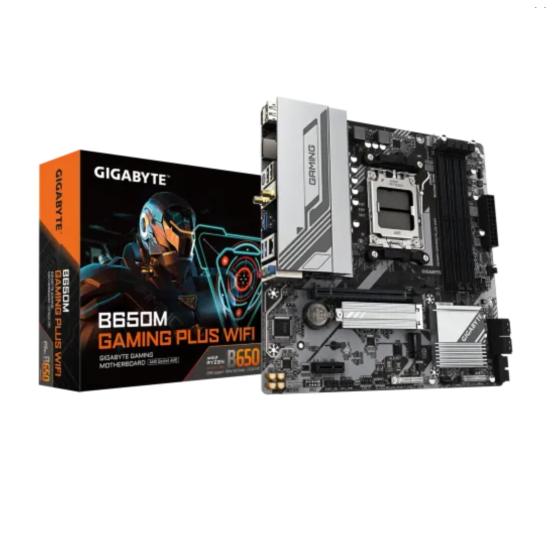

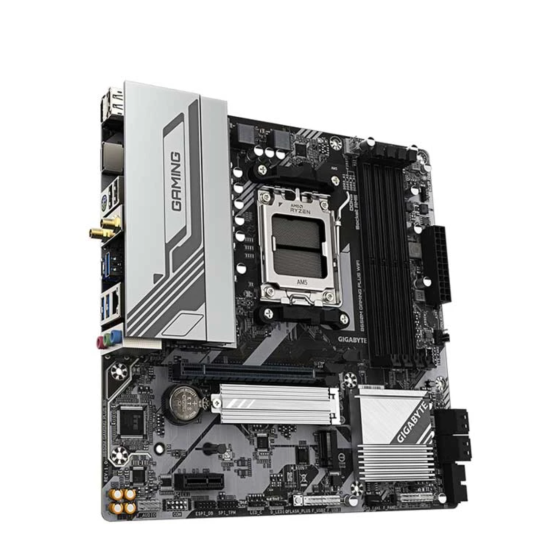

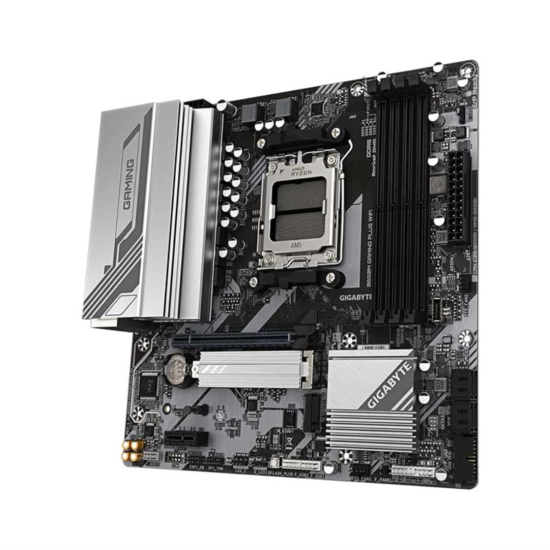

GIGABYTE B650M GAMING PLUS WIFI AM5 DDR5 Motherboard
The GIGABYTE B650M GAMING PLUS WIFI is a feature-rich Micro ATX motherboard designed for modern AMD Ryzen gaming, productivity, and high-performance PC builds. Built around the AMD B650 chipset and AM5 socket, it supports Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series desktop processors, providing a strong upgrade path for current and future AMD platforms.
With 4 DDR5 memory slots, PCIe 4.0 connectivity, dual PCIe 4.0 x4 M.2 slots, 2.5GbE LAN, Wi-Fi, multiple display outputs, and GIGABYTE's Smart Fan 6 and Q-Flash Plus technologies, this motherboard is well suited for gaming PCs, content creation systems, office workstations, and versatile home computers.
AMD AM5 Platform and B650 Chipset
The motherboard uses the AMD B650 chipset with an AM5 CPU socket, supporting AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors. This makes it a practical platform for building a powerful AMD-based desktop with a dedicated graphics card and high-speed DDR5 memory.
Its 5+2+2 phase digital VRM design is engineered to provide stable power delivery for supported Ryzen processors. The board also uses a solid-pin CPU power connector and incorporates thermal management features for reliable operation during demanding workloads.
DDR5 Memory with AMD EXPO and Intel XMP
GIGABYTE B650M GAMING PLUS WIFI features four DDR5 DIMM slots supporting up to 256GB of system memory. It supports dual-channel memory architecture, AMD EXPO, and Intel XMP memory modules. Depending on the installed CPU, memory configuration, and module compatibility, supported overclocked memory speeds can reach up to DDR5-8000 MT/s (OC).
The board's DDR5 implementation is suitable for gaming, multitasking, application workloads, and performance-focused PC configurations where higher memory bandwidth can provide additional system responsiveness.
PCIe 4.0 and High-Speed M.2 Storage
For graphics, the motherboard provides one PCIe 4.0 x16 slot connected to the CPU. The available link configuration can vary depending on the Ryzen processor installed. A separate PCIe 3.0 x1 slot is also available for expansion cards.
Storage connectivity includes two M.2 slots supporting PCIe 4.0 x4/x2 NVMe SSDs and four SATA 6Gb/s ports. This allows users to install multiple high-speed NVMe SSDs alongside traditional SATA storage. The motherboard also supports RAID 0, RAID 1, and RAID 10 for supported NVMe and SATA configurations.
Wi-Fi and 2.5GbE Networking
One of the major advantages of the B650M GAMING PLUS WIFI is its integrated wireless networking. Depending on PCB revision, GIGABYTE specifies either Realtek Wi-Fi 6E RTL8852CE on Rev. 1.0 or Realtek Wi-Fi 6 RTL8851BE on Rev. 1.1/1.2, with Bluetooth 5.3. Buyers should therefore verify the motherboard revision when purchasing.
For wired networking, the motherboard includes a Realtek 2.5GbE LAN controller, providing significantly higher bandwidth than traditional Gigabit Ethernet for compatible networking equipment.
Triple Display Support and Connectivity
The motherboard provides two DisplayPort outputs and one HDMI 2.1 output when used with a compatible processor featuring integrated Radeon graphics. The DisplayPort outputs support up to 3840×2160 at 144Hz, while HDMI supports up to 4096×2160 at 60Hz. It can support up to three displays simultaneously under supported configurations.

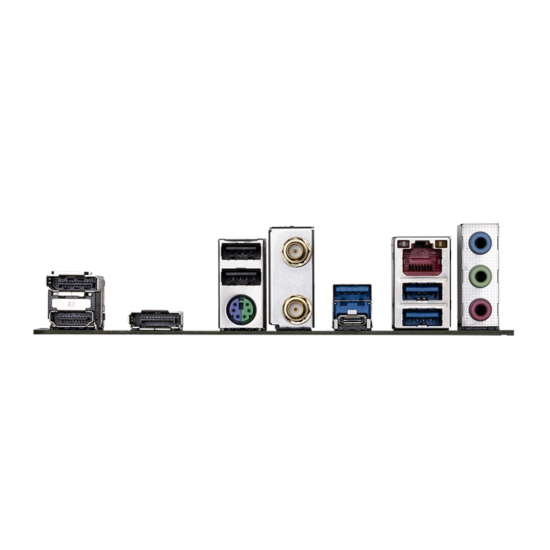

USB connectivity includes rear USB Type-C and Type-A ports, additional internal USB headers, and USB 2.0 connectivity, making it suitable for modern peripherals, external storage, gaming accessories, and other PC devices.
Smart Fan 6 and Thermal Management
GIGABYTE's Smart Fan 6 technology provides multiple temperature sensors and hybrid fan headers with fan-stop functionality. The board also features extended heatsink coverage to help manage heat around important motherboard components during demanding workloads.
EZ-Latch and Q-Flash Plus
The PCIe x16 slot includes EZ-Latch functionality for easier graphics-card installation and removal. For BIOS maintenance, Q-Flash Plus allows users to update the motherboard BIOS without installing the CPU, memory, or graphics card, simplifying system assembly and troubleshooting.
Key Features
-
AMD AM5 Socket: Supports Ryzen 7000, 8000 and 9000 Series desktop processors.
-
DDR5 Memory: 4 DIMM slots with up to 256GB and high-speed OC support.
-
PCIe 4.0 Storage: Two M.2 PCIe 4.0 x4/x2 slots for fast NVMe SSDs.
-
Fast Networking: 2.5GbE LAN with integrated Wi-Fi and Bluetooth.
Why Choose GIGABYTE B650M GAMING PLUS WIFI?
The GIGABYTE B650M GAMING PLUS WIFI is a strong choice for users looking to build a compact yet capable AMD Ryzen PC. Its AM5 platform, four DDR5 slots, PCIe 4.0 graphics interface, dual M.2 storage support, 2.5GbE networking, integrated Wi-Fi, and practical BIOS and cooling features provide a well-balanced foundation for gaming and everyday high-performance computing.
Its Micro ATX 24.4 × 24.4cm form factor makes it particularly suitable for compact gaming PCs and productivity systems where space is limited without giving up essential expansion and connectivity features.
Note: GIGABYTE lists different wireless controllers depending on motherboard revision. Rev. 1.0/1.1/1.2 specifications should therefore be checked against the exact unit before purchase.
FAQ (Frequently Asked Questions)
What is the GIGABYTE B650M GAMING PLUS WIFI?
It is a Micro ATX AMD B650 motherboard with an AM5 socket, DDR5 memory support, Wi-Fi, 2.5GbE LAN, PCIe 4.0, and dual M.2 storage support.
Which processors are compatible with this motherboard?
It supports AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series desktop processors.
How much RAM does the GIGABYTE B650M GAMING PLUS WIFI support?
It has four DDR5 DIMM slots and supports up to 256GB of system memory.
What is the maximum supported DDR5 RAM speed?
GIGABYTE lists DDR5 speeds up to 8000 MT/s OC, depending on the CPU, memory modules, and system configuration.
Does the B650M GAMING PLUS WIFI support Wi-Fi?
Yes. The motherboard includes integrated Wi-Fi, with the exact Wi-Fi generation depending on the PCB revision. Rev. 1.0 uses Wi-Fi 6E, while Rev. 1.1/1.2 uses Wi-Fi 6.
Does it have 2.5GbE LAN?
Yes. It features a Realtek 2.5GbE LAN controller supporting 2.5Gbps, 1Gbps, and 100Mbps connections.
How many M.2 SSD slots are available?
There are two M.2 slots supporting PCIe 4.0 x4/x2 NVMe SSDs, along with four SATA 6Gb/s ports.
Does this motherboard support PCIe 4.0 graphics cards?
Yes. The primary PCIe x16 slot supports PCIe 4.0, with the available link configuration depending on the installed Ryzen processor.
Does the motherboard support AMD EXPO?
Yes. It supports AMD EXPO memory profiles as well as Intel XMP memory modules.
What is the form factor of this motherboard?
The GIGABYTE B650M GAMING PLUS WIFI is a Micro ATX motherboard measuring 24.4 × 24.4cm.
