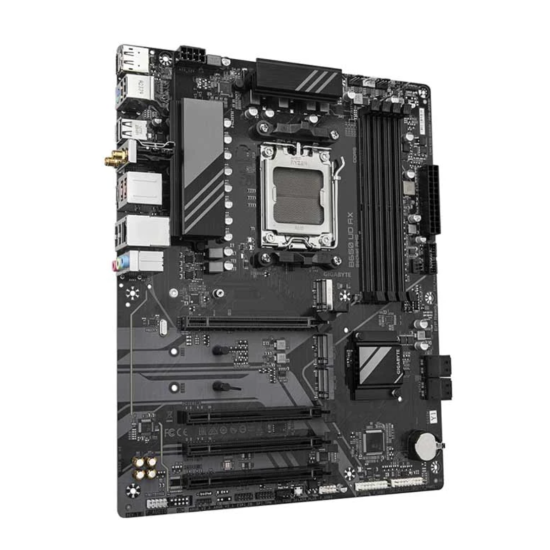

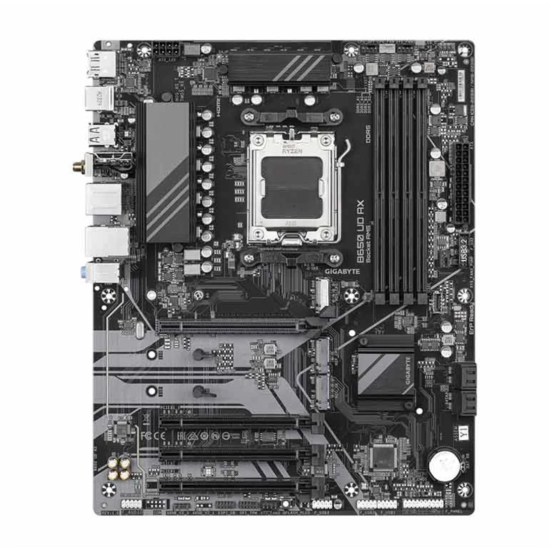

GIGABYTE B650 UD AX AM5 DDR5 Motherboard
The GIGABYTE B650 UD AX is an ATX AMD AM5 motherboard designed for modern gaming PCs, performance desktops, productivity systems, and workstation builds. Based on the AMD B650 chipset, it supports AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors. The motherboard combines DDR5 memory, PCIe 5.0 storage support, PCIe 4.0 graphics connectivity, three M.2 slots, Wi-Fi 6, Gigabit LAN, and modern USB connectivity in a full-size ATX design. GIGABYTE also equips the board with a 6+2+2 phase digital VRM solution, Smart Fan 6, EZ-Latch, and Q-Flash Plus for a balanced combination of performance, expansion, and usability.
AMD AM5 Platform and B650 Chipset
The B650 UD AX uses the AMD Socket AM5 platform and supports compatible AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors. The AMD B650 chipset provides a modern platform for gaming, content creation, productivity, office applications, and everyday high-performance computing.
GIGABYTE uses a 6+2+2 phase digital VRM design with an 8-pin ATX 12V CPU power connector. The motherboard is also built on a 6-layer PCB, providing a solid foundation for compatible Ryzen processors and DDR5 memory configurations.
DDR5 Memory Support up to 256GB
The motherboard features four DDR5 DIMM slots with dual-channel memory architecture and supports up to 256GB of system memory. GIGABYTE lists support for DDR5 memory speeds up to 8000 MT/s through overclocking, depending on the CPU, memory modules, and configuration.
The B650 UD AX supports both AMD EXPO and Intel XMP memory profiles, making it easier to configure compatible high-performance DDR5 memory kits.
PCIe 4.0 Graphics Support
The primary PCI Express x16 slot is connected to the CPU and supports PCIe 4.0 x16 with compatible Ryzen 7000 and Ryzen 9000 Series processors. With Ryzen 8000 Series processors, the available PCIe mode depends on the specific CPU, with supported configurations including PCIe 4.0 x8 or x4.
Additional PCIe expansion slots are available for compatible add-in cards, providing flexibility for graphics, networking, capture, storage, and other expansion requirements.
Triple M.2 NVMe Storage
For high-speed storage, the GIGABYTE B650 UD AX provides three M.2 connectors. The primary CPU-connected M.2 slot supports PCIe 5.0 x4/x2 with compatible Ryzen 7000 and Ryzen 9000 processors, while the other two M.2 slots support PCIe 4.0 connectivity.
The motherboard also provides four SATA 6Gb/s connectors for additional SATA SSDs and hard drives. GIGABYTE lists support for RAID 0, RAID 1, and RAID 10 for compatible NVMe and SATA storage configurations.
Wi-Fi 6 and Gigabit LAN
The B650 UD AX features an integrated Realtek RTL8851 Wi-Fi 6 module, supporting 802.11a/b/g/n/ac/ax wireless standards across the 2.4GHz and 5GHz bands. It supports 80MHz wireless operation and includes Bluetooth 5.3.
For wired networking, the motherboard uses a Realtek RTL8111H Gigabit LAN controller, supporting 10/100/1000Mbps connections. This provides reliable wired connectivity for gaming, internet access, local networking, and file transfers.
HDMI 2.1 and DisplayPort 1.4
The motherboard provides one DisplayPort 1.4 and one HDMI 2.1 output for compatible processors with integrated graphics.
DisplayPort supports up to 3840 × 2160 at 144Hz, while HDMI supports up to 4096 × 2160 at 60Hz. Actual display capability depends on the installed processor and its integrated graphics functionality.
USB Connectivity
The GIGABYTE B650 UD AX provides a wide selection of USB connectivity for external storage, keyboards, mice, controllers, printers, smartphones, and other peripherals.
The rear I/O includes 2× USB 3.2 Gen 2 Type-A ports, 1× USB Type-C port with USB 3.2 Gen 1 support, and multiple USB 2.0/1.1 ports. Internal headers provide additional USB connectivity, including a front USB Type-C header.
Smart Fan 6 and Thermal Management
GIGABYTE includes Smart Fan 6 for system cooling management. The motherboard provides multiple fan and pump headers, temperature monitoring, fan-speed detection, and configurable fan control.
Smart Fan 6 supports hybrid PWM/DC fan headers and fan-stop functionality, allowing users to configure cooling behavior according to system temperature and workload.
EZ-Latch and Q-Flash Plus
The motherboard features PCIe EZ-Latch, providing a quick-release mechanism for easier graphics-card installation and removal.
Q-Flash Plus allows users to update the BIOS without requiring the CPU, memory, or graphics card to be installed, making BIOS maintenance more convenient. GIGABYTE also supports Q-Flash and GIGABYTE Control Center for system management and updates.
ATX Design and Expansion
The B650 UD AX uses a full-size ATX form factor measuring 30.5 × 24.4 cm. The larger board layout provides room for four DDR5 DIMM slots, three M.2 connectors, four SATA ports, multiple PCIe expansion slots, integrated wireless networking, and extensive USB connectivity.
Key Features
-
AMD Socket AM5 for Ryzen 7000/8000/9000 Series processors
-
AMD B650 chipset
-
ATX 30.5 × 24.4cm form factor
-
4× DDR5 DIMM slots
-
Up to 256GB DDR5 memory
-
DDR5 up to 8000 MT/s (OC)
-
AMD EXPO and Intel XMP support
-
PCIe 4.0 x16 graphics support
-
3× M.2 NVMe slots
-
1× PCIe 5.0 and 2× PCIe 4.0 M.2
-
4× SATA 6Gb/s connectors
-
Realtek Gigabit LAN
-
Realtek Wi-Fi 6
-
Bluetooth 5.3
-
HDMI 2.1 and DisplayPort 1.4
-
USB Type-C connectivity
-
6+2+2 digital VRM design
-
Smart Fan 6
-
PCIe EZ-Latch
-
Q-Flash Plus BIOS update support
Why Choose GIGABYTE B650 UD AX?
The GIGABYTE B650 UD AX is a practical choice for users building a modern AMD AM5 gaming or performance PC. Its combination of Ryzen processor support, four DDR5 memory slots, PCIe 5.0 NVMe storage, three M.2 connectors, Wi-Fi 6, Gigabit LAN, Smart Fan 6, and Q-Flash Plus provides a balanced platform for gaming, productivity, content creation, and everyday high-performance computing.
Note: GIGABYTE specifications can vary by motherboard revision. The specifications above are based on GIGABYTE's published B650 UD AX Rev. 1.0/1.1 specifications.
FAQ (Frequently Asked Questions)
What processors does the GIGABYTE B650 UD AX support?
It supports compatible AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors using the AM5 socket.
How much RAM does the B650 UD AX support?
The motherboard supports up to 256GB of DDR5 memory through four DIMM slots.
What is the maximum DDR5 speed?
It supports DDR5 memory speeds up to 8000 MT/s through overclocking, depending on the CPU, memory modules, and configuration.
Does the B650 UD AX support PCIe 5.0?
Yes. Its primary M.2 connector supports PCIe 5.0 x4/x2 NVMe SSDs with compatible Ryzen 7000 and Ryzen 9000 processors. The primary graphics slot operates at PCIe 4.0 x16 with supported Ryzen processors.
How many M.2 slots are available?
There are three M.2 slots: one PCIe 5.0-capable M.2 slot and two PCIe 4.0 M.2 slots.
Does the B650 UD AX support Wi-Fi 6?
Yes. It features Realtek Wi-Fi 6 with 2.4GHz and 5GHz wireless connectivity.
Does GIGABYTE B650 UD AX have Bluetooth?
Yes. The integrated wireless module supports Bluetooth 5.3.
Does the B650 UD AX have 2.5GbE LAN?
No. The B650 UD AX uses a Realtek Gigabit LAN controller supporting up to 1Gbps.
What display outputs are available?
It provides 1× DisplayPort 1.4 and 1× HDMI 2.1, with display functionality dependent on the integrated graphics capability of the installed processor.
Is the GIGABYTE B650 UD AX suitable for gaming?
Yes. Its AM5 processor support, DDR5 memory, PCIe 4.0 graphics interface, PCIe 5.0 NVMe support, Wi-Fi 6, and Smart Fan 6 features make it suitable for modern gaming PC builds.
What is the form factor of the B650 UD AX?
The motherboard uses the ATX form factor and measures 30.5 × 24.4 cm.
