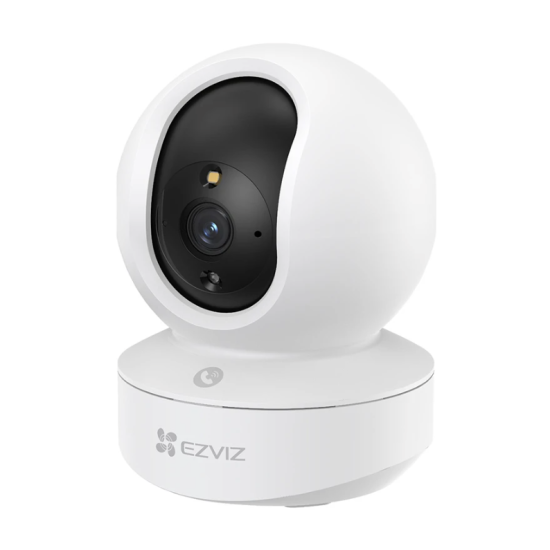

EZVIZ TY1 Pro 2K 3MP Wi-Fi Pan/Tilt Smart Camera
The EZVIZ TY1 Pro 2K is a smart indoor Wi-Fi security camera designed to provide wide-area monitoring with clear 2K video and intelligent detection features. It is suitable for homes, offices, shops, small businesses, bedrooms, living rooms, and other indoor spaces where flexible remote monitoring is required.
The camera uses a 1/2.7-inch Progressive Scan CMOS sensor and a 4mm F1.6 lens. Its maximum resolution is 2304 × 1296, which EZVIZ markets as 2K resolution. The camera also supports H.264 and H.265 video compression for efficient video storage and transmission.
2K High-Resolution Video
The TY1 Pro 2K records at up to 2304 × 1296 resolution, providing more detail than standard 1080p video. This makes it suitable for monitoring people, pets, rooms, entrances, and other indoor areas.
The 4mm lens provides an approximately 82° horizontal, 48° vertical and 98° diagonal viewing angle.
360° Panoramic Coverage
The camera is designed to provide broad room coverage through its motorized pan and tilt mechanism. It supports approximately 340° horizontal rotation and 55° vertical rotation, allowing the lens to cover a large portion of an indoor space.
Its patrol mode can automatically move between selected viewing positions. Users can configure up to four preset points for customized patrol patterns.
Smart Human Detection and Auto-Tracking
The TY1 Pro 2K includes smart detection features such as human shape detection and human shape tracking. When supported activity is detected, the camera can automatically track the subject within its viewing range.
It also supports loud noise detection, which can help identify sudden changes in sound levels, such as a baby crying or another unexpected loud noise.
Smart Color Night Vision
For nighttime monitoring, the camera offers smart color night vision up to 5 meters using its built-in spotlight. It can also provide IR night vision up to 10 meters when infrared monitoring is preferred.
This gives users flexibility when monitoring indoor areas in darkness or low-light conditions.
Two-Way Communication
The TY1 Pro 2K supports two-way calling, allowing users to communicate with people near the camera through the EZVIZ app. The camera includes a built-in microphone and speaker for audio communication.
This can be useful for communicating with family members, checking on children, talking to employees, or interacting with pets while away from home.
Wi-Fi and Ethernet Connectivity

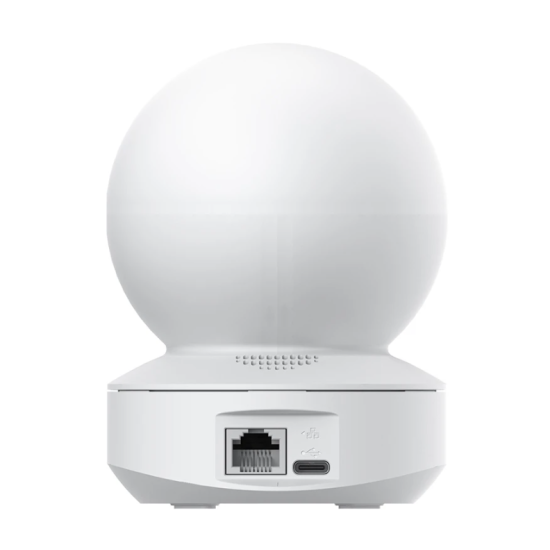

The camera supports 2.4GHz Wi-Fi using IEEE 802.11b/g/n standards. It also provides an RJ45 10/100Mbps Ethernet port, allowing the camera to connect to a network using either Wi-Fi or a wired Ethernet connection.
The 2.4GHz wireless connection is suitable for typical indoor smart-camera installations where the camera needs to communicate with the home or office network.
microSD and Cloud Storage
The TY1 Pro 2K supports a microSD card up to 512GB for local video storage. EZVIZ also supports its CloudPlay storage service, although cloud-service availability and subscription options can vary by market.
Privacy Protection
For situations when monitoring is not required, the camera includes a Sleep Mode for privacy protection. This allows users to temporarily stop normal monitoring when privacy is desired.
Key Features
-
2K Resolution up to 2304 × 1296
-
3MP Progressive Scan CMOS Sensor
-
4mm F1.6 Lens
-
340° Horizontal and 55° Vertical Rotation
-
Smart Human Shape Detection
-
Human Shape Auto-Tracking
-
Patrol Mode with Preset Points
-
Smart Color Night Vision up to 5m
-
IR Night Vision up to 10m
-
Two-Way Audio Communication
-
2.4GHz Wi-Fi Connectivity
-
RJ45 10/100Mbps Ethernet Port
-
microSD Card Support up to 512GB
-
H.264/H.265 Video Compression
-
EZVIZ CloudPlay Support
FAQ (Frequently Asked Questions)
1. What is the resolution of the EZVIZ TY1 Pro 2K?
The camera supports a maximum resolution of 2304 × 1296, marketed by EZVIZ as 2K resolution.
2. What lens does the TY1 Pro 2K use?
It uses a 4mm F1.6 lens with approximately 82° horizontal, 48° vertical and 98° diagonal viewing angles.
3. Does the TY1 Pro 2K support pan and tilt?
Yes. It supports approximately 340° horizontal rotation and 55° vertical rotation for broad indoor coverage.
4. Does it support human detection?
Yes. The camera supports human shape detection and human shape tracking.
5. Does the camera have auto-tracking?
Yes. Its smart human-shape tracking feature allows the camera to follow detected human movement within its coverage area.
6. How far can the camera see at night?
The TY1 Pro 2K supports IR night vision up to 10 meters and smart color night vision up to 5 meters.
7. Does the TY1 Pro 2K support two-way talk?
Yes. It supports two-way calling, allowing communication through the camera using the EZVIZ app.
8. What storage options are available?
The camera supports microSD cards up to 512GB and EZVIZ CloudPlay storage. Cloud availability depends on the market and service plan.
9. Does it support Wi-Fi?
Yes. The camera supports 2.4GHz Wi-Fi and can also connect through its RJ45 Ethernet port.
10. Is the EZVIZ TY1 Pro 2K suitable for outdoor installation?
No. The TY1 Pro 2K is designed as an indoor smart home camera. For outdoor surveillance, an outdoor-rated EZVIZ camera should be used instead.
