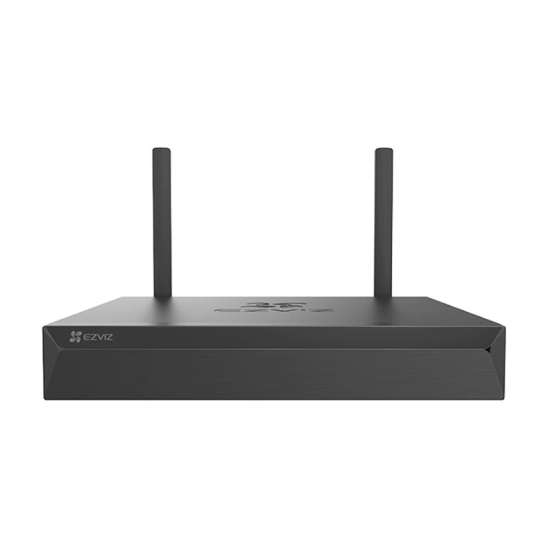

EZVIZ CS-X5S-8W 8 Channel Wireless NVR
The EZVIZ CS-X5S-8W is an 8-channel wireless NVR designed for home, office, shop and commercial surveillance systems. It can handle up to eight 5MP IP cameras, providing a centralized solution for live monitoring, recording and playback.
8-Channel Camera Support
The NVR supports up to 8 IP camera channels, with support for cameras up to 5MP. This makes it suitable for surveillance installations that need multiple cameras around a property.
Wireless Camera Connectivity
The CS-X5S-8W features 2.4GHz wireless connectivity and is designed to connect compatible wireless cameras without requiring a separate network cable for every camera. Local specifications list a wireless range of up to 100 meters, although actual coverage depends on walls, interference and installation conditions.
HDMI & VGA Display Output
For local monitoring, the NVR provides both HDMI and VGA outputs. HDMI supports up to 2560 × 1440 at 30Hz, while VGA supports up to 1920 × 1080 at 60Hz.
H.265 & H.264 Decoding
The NVR supports H.265 and H.264 video formats, allowing it to handle compatible IP camera streams efficiently.
Flexible Recording Modes
You can configure recording according to your surveillance requirements. Supported modes include:
-
Manual recording
-
Scheduled recording
-
Motion detection recording
-
Event-triggered recording
This allows recording to continue according to a selected schedule or when activity is detected.
Up to 8TB HDD Storage
The CS-X5S-8W has one SATA interface and supports a 3.5-inch HDD from 1TB up to 8TB. The hard drive is not necessarily included with the NVR, so storage should be checked when purchasing.
8-Channel Synchronized Playback
The NVR supports 8-channel synchronized playback, along with instant, normal, event, tag and log-based playback options. This makes it easier to review recorded footage from multiple cameras.
Network Connectivity
For wired networking, the device includes a 10/100Mbps Ethernet port. It also has a USB 2.0 port for supported auxiliary and backup functions.
Key Features
-
8-Channel Wireless NVR
-
Supports Up to 8 × 5MP IP Cameras
-
2.4GHz Wireless Connectivity
-
Wireless Range up to 100m
-
H.265 & H.264 Support
-
HDMI Output up to 2560 × 1440 @ 30Hz
-
VGA Output up to 1920 × 1080 @ 60Hz
-
1TB–8TB 3.5-inch HDD Support
-
Motion, Scheduled, Manual & Event Recording
-
8-Channel Synchronized Playback
-
10/100Mbps Ethernet Port
-
USB 2.0 Port
FAQ (Frequently Asked Questions)
1. How many cameras can the EZVIZ CS-X5S-8W support?
It supports up to 8 IP camera channels, with listed support for cameras up to 5MP.
2. Is the CS-X5S-8W a wireless NVR?
Yes. It supports 2.4GHz wireless connectivity for compatible wireless IP cameras.
3. What is the maximum supported camera resolution?
The listed specification supports up to 5MP IP cameras across the eight channels.
4. What size HDD can be installed?
The NVR supports a 3.5-inch SATA HDD from 1TB to 8TB.
5. Does the NVR come with an HDD?
The specifications only identify the built-in SATA interface and supported HDD capacity. HDD inclusion should be confirmed with the seller before purchase.
6. What display outputs are available?
It has one HDMI output and one VGA output. HDMI supports up to 2560 × 1440 at 30Hz, while VGA supports up to 1920 × 1080 at 60Hz.
7. What recording modes does it support?
It supports manual, scheduled, motion detection and event-triggered recording.
8. Can I watch recordings from all cameras together?
Yes. The CS-X5S-8W supports 8-channel synchronized playback.
9. Does it support H.265?
Yes. The NVR supports H.265 and H.264 video decoding.
10. Is it suitable for home and business surveillance?
Yes. Its 8-channel capacity and wireless camera connectivity make it suitable for homes, offices, shops and other small-to-medium surveillance installations.
