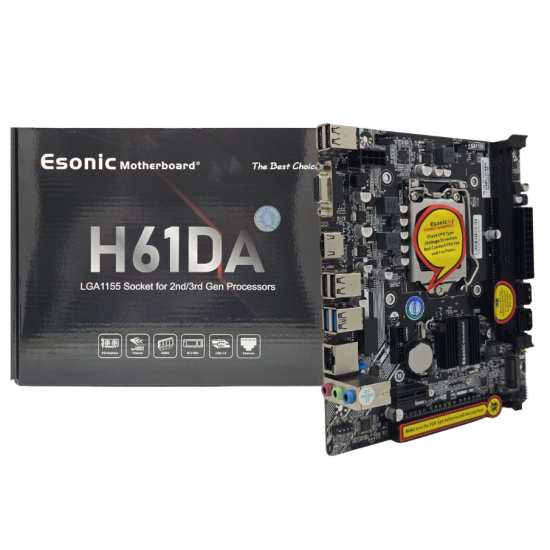

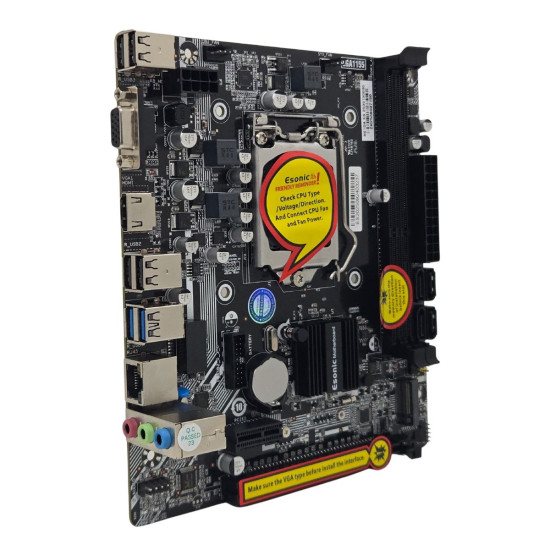

Esonic H61DA1 DDR3 LGA1155 Motherboard
The Esonic H61DA1 is a Micro-ATX motherboard designed for budget-friendly desktop builds and upgrades based on Intel's LGA1155 platform. It uses the Intel H61 chipset and supports compatible 2nd and 3rd Generation Intel Core i3, Core i5, and Core i7 processors, along with Pentium and Celeron CPUs.
For users upgrading an older Intel-based desktop, the H61DA1 provides essential connectivity and storage features while retaining compatibility with DDR3 memory. It supports two DDR3 memory slots with a maximum reported capacity of 16GB, with supported speeds of 1066MHz, 1333MHz, and 1600MHz.
LGA1155 Intel Processor Support
The motherboard supports compatible 2nd and 3rd Generation Intel Core processors using the LGA1155 socket. This makes it suitable for economical PC upgrades, office computers, home-use systems, and replacement builds using compatible older-generation Intel CPUs.
Key Features
-
Intel H61 chipset
-
LGA1155 CPU socket
-
Supports 2nd/3rd Gen Intel Core processors
-
DDR3 memory support
-
2 × DDR3 memory slots
-
Up to 16GB reported maximum memory
-
Micro-ATX form factor
-
M.2 NVMe support
-
4 × SATA storage ports
-
PCIe expansion support
-
Gigabit LAN
NVMe M.2 Storage Support
One of the useful features of the H61DA1 is its M.2 slot, which supports NVMe storage according to current Bangladesh retailer specifications. This provides an option for users who want faster SSD storage while upgrading an older LGA1155-based system.
The board also provides four SATA ports for compatible SATA storage devices.
Micro-ATX Design for Budget PC Builds
The Micro-ATX form factor makes the Esonic H61DA1 suitable for compact desktop cases and economical PC configurations. It can be used for basic office computing, home use, internet browsing, media playback, and other everyday workloads when paired with a compatible processor, memory, and storage.
Ideal For
The Esonic H61DA1 can be considered for:
-
Budget PC Builds
-
Office Computers
-
Home Computers
-
Older Intel PC Upgrades
-
PC Repair & Replacement
-
Basic Productivity
-
Internet Browsing
-
Entry-Level Computing
FAQ (Frequently Asked Questions)
1. Which processors are supported by the Esonic H61DA1?
It supports compatible 2nd and 3rd Generation Intel Core i3, i5, and i7 processors, along with Pentium and Celeron CPUs.
2. Which socket does the Esonic H61DA1 use?
The motherboard uses the Intel LGA1155 CPU socket.
3. What type of RAM does the H61DA1 support?
It supports DDR3 memory through two memory slots, with supported speeds listed up to 1600MHz.
4. What is the maximum supported RAM?
Current retailer specifications list a maximum memory capacity of 16GB.
5. Does the Esonic H61DA1 support NVMe SSDs?
Yes. Current Bangladesh listings specify an M.2 slot with NVMe support.
6. How many SATA ports does it have?
Current specifications list four SATA ports for storage devices.
7. What is the motherboard form factor?
The Esonic H61DA1 uses a Micro-ATX (M-ATX) form factor.
8. Is the Esonic H61DA1 suitable for a budget PC?
Yes. Its LGA1155 CPU support, DDR3 memory compatibility, and M.2 storage support make it suitable for economical PC builds and older-system upgrades.
