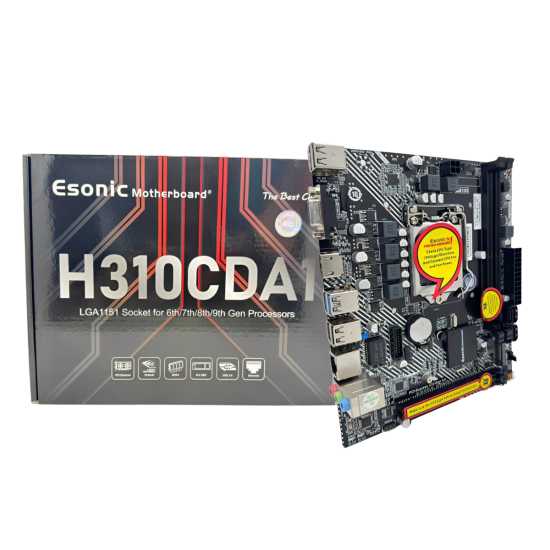

Esonic H310C DDR4 Motherboard
The Esonic H310C DDR4 Motherboard is a practical choice for budget-conscious users building or upgrading an Intel-based desktop computer. It uses the LGA1151 socket and Intel H310C chipset, with current listings specifying support for compatible Intel processors. Some Bangladesh retailers list support for 8th and 9th Gen Intel Core processors, while other listings advertise broader 6th–9th Gen compatibility. Because CPU support can depend on the board revision and BIOS, checking the exact version before installation is recommended.
DDR4 Memory Support
The motherboard features two DDR4 DIMM slots. Retailer specifications vary on the maximum supported capacity, with listings ranging from 32GB to 64GB. The most consistently listed memory speed is DDR4 2133MHz. For an exact capacity, the specific board revision should be confirmed before purchase.
M.2 and SATA Storage
For storage, the H310C provides an M.2 socket supporting compatible SSD sizes such as 2260 and 2280. It also includes four SATA 6Gb/s ports according to several Bangladesh listings, allowing users to connect SATA SSDs and hard drives alongside an M.2 drive.
Expansion and Connectivity
The motherboard includes a PCIe x16 slot for compatible graphics or expansion cards. Rear I/O specifications include HDMI, VGA, USB ports, LAN, and audio connections, providing the essential connectivity needed for budget desktop systems.
Expansion and Connectivity
The Micro-ATX design, measuring approximately 190 × 170mm according to retailer specifications, makes the motherboard suitable for compact desktop cases. It includes a PCIe x16 slot for a compatible dedicated graphics card or other expansion hardware.
For everyday connectivity, the board provides USB ports, HDMI, VGA, LAN, and audio connections. Wireless connectivity such as Wi-Fi and Bluetooth is not built in, so separate adapters are required if needed.
Suitable for Budget PC Builds
The Esonic H310C is a sensible option for basic desktop configurations where affordability and essential functionality are priorities. It can be used for office applications, web browsing, home computing, educational tasks, media consumption, and other everyday workloads when paired with a compatible Intel processor and suitable components.
Who Should Consider This Motherboard?
-
Budget PC builders
-
Office computer users
-
Home PC users
-
PC upgrade projects
-
Repair and replacement builds
-
Students and basic productivity users
FAQ (Frequently Asked Questions)
1. Which processors are compatible with the Esonic H310C?
Retailer listings specify support for compatible Intel Core i3, i5, i7, Pentium, and Celeron processors. Exact generation support should be verified by board revision and BIOS.
2. What CPU socket does the Esonic H310C use?
The motherboard uses the Intel LGA1151 socket.
3. What type of RAM does it support?
It supports DDR4 memory through two DIMM slots. Current listings commonly specify DDR4 2133MHz.
4. Does the Esonic H310C support an M.2 SSD?
Yes. The motherboard includes an M.2 socket for compatible SSDs.
5. How many SATA ports are available?
Several current listings specify four SATA 6Gb/s ports.
6. Can I install a dedicated graphics card?
Yes. It includes a PCIe x16 slot for a compatible graphics card or expansion device.
7. Does it have HDMI and VGA outputs?
Yes. Current specifications list HDMI and VGA display outputs. Actual integrated-graphics functionality depends on the installed CPU.
8. What is the motherboard's form factor?
The H310C is a compact Micro-ATX motherboard, with listings specifying approximately 190 × 170mm.
9. Does it have built-in Wi-Fi or Bluetooth?
No. Current retailer specifications list no built-in Wi-Fi or Bluetooth, so separate adapters are required.
