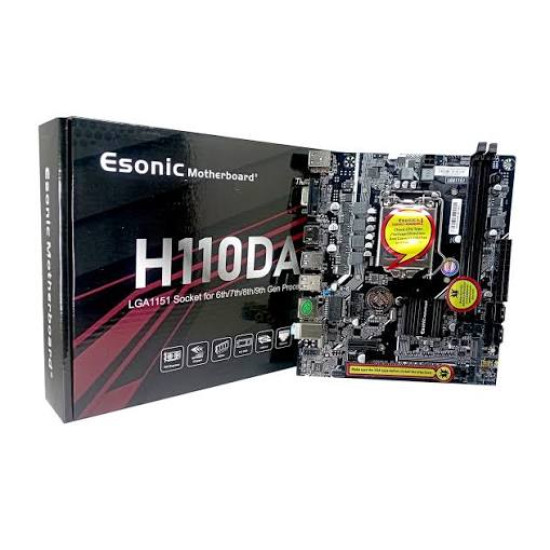

Esonic H110DA1 DDR4 LGA1151 Motherboard
The Esonic H110DA1 is a budget-friendly Micro-ATX motherboard designed for desktop PC builds, upgrades, and replacement systems. Built around the Intel H110 chipset and LGA1151 socket, it supports compatible Intel Core i3, Core i5, Core i7, Pentium, and Celeron processors. Current Bangladesh listings also specify support for 6th and 7th Gen processors, while some listings advertise compatibility with 8th and 9th Gen CPUs. Because H110 platform CPU compatibility can depend on BIOS and board revision, the exact processor should be verified before purchase.
The motherboard uses DDR4 memory and features two DIMM slots. Current specifications list support for up to 64GB RAM, with 2133MHz memory support. It also provides an M.2 slot and four SATA 6Gb/s ports for flexible storage configurations.
LGA1151 Intel Processor Support
The H110DA1 uses the LGA1151 CPU socket and is designed for compatible Intel processors. It supports Core i3, Core i5, Core i7, Pentium, and Celeron processors according to current retailer specifications.
DDR4 Memory for Everyday Computing
The motherboard features two DDR4 DIMM slots and supports dual-channel memory architecture. Current specifications list a maximum supported capacity of up to 64GB, making it suitable for office PCs, home computers, and budget-oriented desktop configurations.
M.2 and SATA Storage Support
For storage, the Esonic H110DA1 provides one M.2 slot supporting compatible 2260/2280 SSDs, along with four SATA 6Gb/s ports. This allows users to combine an M.2 SSD with SATA-based SSDs or hard drives depending on their requirements.
Expansion and Connectivity
The motherboard includes PCIe expansion support for compatible graphics and other expansion cards. Its rear I/O includes HDMI, VGA, LAN, USB 3.1 Gen 1, USB 2.0, and audio ports, providing the essential connectivity needed for everyday desktop use.
Ideal For
The Esonic H110DA1 is suitable for:
-
Budget PC Builds
-
Office Computers
-
Home Computers
-
PC Upgrade Projects
-
Repair & Replacement Systems
-
Internet Browsing
-
Basic Productivity
-
Everyday Computing
FAQ (Frequently Asked Questions)
1. Which processors are supported by the Esonic H110DA1?
Current listings specify support for compatible Intel Core i3, i5, i7, Pentium, and Celeron processors using the LGA1151 socket. CPU-generation support may vary by BIOS and board revision.
2. Which CPU socket does the H110DA1 use?
The motherboard uses the Intel LGA1151 socket.
3. What type of RAM does it support?
It supports DDR4 memory through two DIMM slots, with current listings specifying support for up to 64GB.
4. Does the Esonic H110DA1 support M.2 SSD?
Yes. It includes an M.2 slot supporting compatible 2260/2280 SSDs. Some listings specify PCIe 3.0 x4 mode.
5. How many SATA ports does it have?
The motherboard provides four SATA 6Gb/s ports for compatible storage devices.
6. Does it support a dedicated graphics card?
Yes. It includes a PCIe x16 expansion slot for a compatible graphics card.
7. Does the motherboard have HDMI and VGA?
Yes. Current specifications list one HDMI port and one VGA port on the rear I/O panel.
8. What is the form factor of the Esonic H110DA1?
It uses a compact Micro-ATX form factor, with listed dimensions around 215 × 170mm.
9. Is the Esonic H110DA1 suitable for budget PC builds?
Yes. Its DDR4 support, M.2 storage option, SATA ports, and LGA1151 platform make it suitable for economical desktop builds and upgrades.
