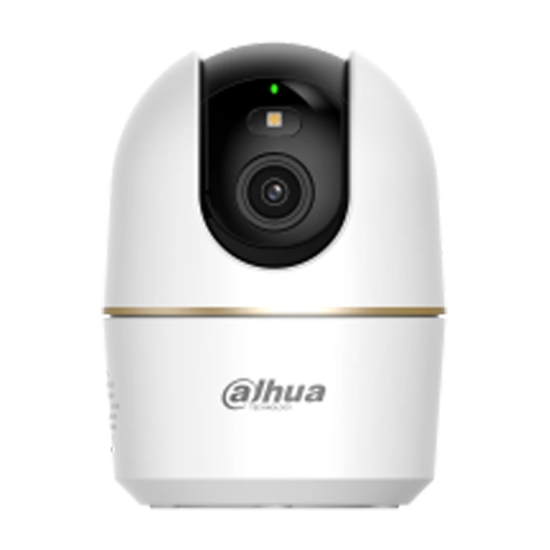

Dahua DH-IPC-H3AS 3MP Indoor Wi-Fi Camera
The Dahua DH-IPC-H3AS is an indoor smart pan and tilt camera designed for home, office and small-business monitoring. It captures video at up to 2304 × 1296 resolution and combines motorized pan and tilt movement with intelligent detection features for wider room coverage.
3MP Image Quality
The camera uses a 1/3.2-inch CMOS sensor and supports 3MP resolution at up to 25/30 fps. The 2.8mm lens provides a broad viewing angle, making it suitable for monitoring rooms and other indoor areas.
Wide Pan & Tilt Coverage
The H3AS can rotate up to 355° horizontally and tilt from -5° to +80°. This allows users to adjust the viewing direction remotely and cover a large portion of an indoor space from a single position.
Smart Dual Light
The camera combines IR and warm-light illumination for monitoring in low-light conditions. IR night vision can reach up to 20 meters, while warm light can provide illumination up to 10 meters under specified conditions.
Human & Pet Detection
The H3AS includes human detection and pet detection, helping distinguish relevant activity from ordinary motion. It also supports motion detection and smart tracking features on compatible configurations.
Two-Way Audio
A built-in microphone and speaker allow two-way audio communication, so users can listen and communicate through the camera using the compatible mobile application.
Dual-Band Wi-Fi
Depending on the listed regional specification, the camera supports 2.4GHz and 5GHz Wi-Fi, while also providing a 10/100Mbps RJ45 network port for wired connectivity.
Local Storage
The camera has a microSD card slot supporting up to 256GB, allowing recorded footage to be stored locally without requiring an NVR for basic recording needs.
Key Features
-
3MP Resolution — 2304 × 1296
-
355° Pan & 80° Tilt-Class Vertical Coverage
-
Smart Dual Light
-
IR Night Vision up to 20m
-
Human & Pet Detection
-
Motion Detection
-
Smart Tracking
-
Two-Way Audio
-
MicroSD Support up to 256GB
-
Wi-Fi Connectivity
-
RJ45 10/100Mbps Ethernet
-
DMSS Mobile App Support
FAQ (Frequently Asked Questions)
1. What resolution does the Dahua H3AS support?
It supports up to 3MP resolution, 2304 × 1296 pixels.
2. How far can the camera pan and tilt?
It supports up to 355° horizontal pan and approximately 85° of vertical movement, from -5° to +80°.
3. Does the camera support night vision?
Yes. It supports IR night vision up to 20 meters and also features warm-light illumination for color monitoring in suitable conditions.
4. Can it detect people and pets?
Yes. The H3AS supports human detection and pet detection, along with motion detection.
5. Does it support two-way communication?
Yes. The camera has a built-in microphone and speaker for two-way audio.
6. How much microSD storage does it support?
It supports a microSD card up to 256GB.
7. Can I connect the camera using a network cable?
Yes. It has an RJ45 10/100 Base-T Ethernet port in addition to wireless connectivity.
8. Can I monitor the camera from a smartphone?
Yes. Dahua's DMSS platform supports compatible mobile monitoring on Android and iOS devices.
9. Is this camera suitable for outdoor use?
No. The DH-IPC-H3AS is designed as an indoor camera and is not specified as weatherproof.
10. Does the camera require an NVR?
Not necessarily. It can use a microSD card for local recording. An NVR can still be used where a larger centralized surveillance system is required.
