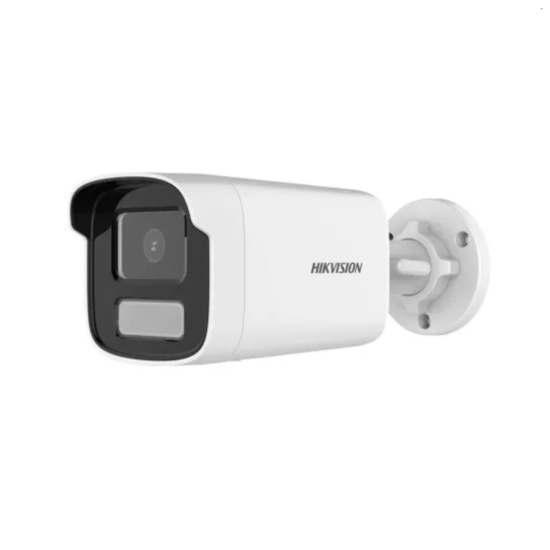

Hikvision DS-2CD1T23G0-I 2MP IR Bullet IP Camera
The Hikvision DS-2CD1T23G0-I is a 2MP Basic IR fixed bullet network camera designed for reliable indoor and outdoor surveillance. It combines a 1/2.8-inch Progressive Scan CMOS sensor, Full HD 1920 × 1080 resolution, 120 dB True WDR, 3D DNR, EXIR 2.0 infrared technology and up to 50-meter IR illumination. The camera also supports PoE, Smart Detection and IP67 water and dust protection, making it suitable for homes, offices, shops, warehouses, entrances and other security installations.
2MP Full HD Imaging
The DS-2CD1T23G0-I uses a 1/2.8-inch Progressive Scan CMOS sensor and delivers up to 2MP resolution at 1920 × 1080. The camera supports up to 30fps at 60Hz, providing clear Full HD video for everyday security monitoring.
Its imaging system is designed to maintain useful detail across different lighting conditions. The camera supports 120 dB True WDR, which helps balance bright and dark areas in scenes with strong backlighting. It also uses 3D Digital Noise Reduction (3D DNR) to reduce image noise and improve image clarity.
50-Meter EXIR 2.0 Infrared Night Vision
For nighttime surveillance, the camera uses EXIR 2.0 infrared technology with an IR range of up to 50 meters. This allows the camera to continue monitoring areas with little or no visible light. Hikvision specifies minimum illumination down to 0.028 Lux in color at F2.0 with AGC enabled, while black-and-white operation can reach 0 Lux with IR illumination.
The camera also uses an IR-cut filter for Day/Night operation, automatically switching between appropriate imaging modes according to lighting conditions.
4mm Fixed Lens and Wide Coverage
The Bangladesh-listed configuration uses a 4mm fixed lens with an F2.0 aperture. It provides approximately 86° horizontal, 47° vertical and 103° diagonal field of view, making it suitable for monitoring entrances, corridors, storefronts, gates and general outdoor areas.
The camera's physical adjustment range includes 0°–360° pan, 0°–75° tilt and 0°–360° rotation, allowing installers to position the viewing angle according to the surveillance area.
Smart Detection
The DS-2CD1T23G0-I supports Smart Detection, providing additional event-monitoring capabilities beyond basic video recording. This makes it suitable for surveillance installations where users need more practical monitoring features.
Combined with Full HD resolution, WDR and night vision, the camera can be used for monitoring residential properties, retail stores, offices, warehouses, parking areas and commercial premises.
H.265+ Video Compression
The camera supports modern video compression technologies designed to optimize network bandwidth and storage usage. The platform supports H.265+, H.265, H.264+ and H.264 video compression.
The main stream supports up to 1920 × 1080 at 25fps in 50Hz environments or 30fps in 60Hz environments, while the sub-stream supports lower resolutions for applications where reduced bandwidth is required.
PoE Network Connectivity
The DS-2CD1T23G0-I features a 10/100 Mbps self-adaptive RJ45 Ethernet port and supports IEEE 802.3af PoE, Type 1 Class 3. PoE allows compatible network equipment to deliver both power and network connectivity through a single Ethernet cable, helping simplify CCTV installation.
The camera can also operate from 12V DC power, providing flexibility when PoE networking is not available.
IP67 Outdoor Protection
The Hikvision DS-2CD1T23G0-I is rated IP67 for protection against dust and water, making it suitable for appropriate outdoor installations. The camera measures approximately 71.67 × 92.87 × 221.49mm and weighs around 540g.
Its bullet-style housing is suitable for mounting on walls and other appropriate surfaces around buildings, gates, entrances and outdoor areas.
Key Features
-
Image Sensor: 1/2.8" Progressive Scan CMOS
-
Resolution: 2MP, 1920 × 1080 Full HD
-
Lens: 4mm Fixed Lens
-
Aperture: F2.0
-
Night Vision: EXIR 2.0 IR, Up to 50m
-
WDR: 120 dB True WDR
-
Noise Reduction: 3D DNR
-
Detection: Smart Detection
-
Compression: H.265+, H.265, H.264+, H.264
-
Network: 10/100M Self-Adaptive RJ45
-
PoE: IEEE 802.3af Type 1 Class 3
-
Protection: IP67 Water and Dust Resistant
-
Power: 12V DC or PoE
-
Dimensions: 71.67 × 92.87 × 221.49mm
-
Weight: Approximately 540g
-
Warranty: 1 Year in the current Bangladesh retailer listing
Why Choose Hikvision DS-2CD1T23G0-I?
The Hikvision DS-2CD1T23G0-I provides a practical combination of Full HD 2MP imaging, long-range IR night vision and reliable network connectivity at an entry-level IP camera specification. Its 50-meter EXIR 2.0 infrared range and 120 dB True WDR make it suitable for surveillance locations where lighting conditions can vary considerably.
Its PoE support, H.265+ compression, Smart Detection, 3D DNR and IP67 protection make the camera suitable for residential and commercial CCTV systems. The 4mm fixed lens provides a relatively wide field of view for general-purpose surveillance, while the rugged bullet design is appropriate for outdoor-facing installations.
Configuration note: Hikvision documentation for the related DS-2CD1T23G0-I(UF) family lists 4mm and 6mm lens options, while the current Bangladesh listing for DS-2CD1T23G0-I specifies the 4mm version. The -IUF variant should not be treated as identical to the standard -I model because storage/audio configurations can differ.
FAQ (Frequently Asked Questions)
What is the resolution of Hikvision DS-2CD1T23G0-I?
The camera provides 2MP Full HD resolution at 1920 × 1080 pixels.
What type of camera is DS-2CD1T23G0-I?
It is a 2MP Basic IR fixed bullet network IP camera designed for security surveillance.
How far can the DS-2CD1T23G0-I see at night?
Its EXIR 2.0 infrared illumination range is up to 50 meters.
What lens does the DS-2CD1T23G0-I use?
The Bangladesh-listed configuration uses a 4mm fixed lens with F2.0 aperture.
Does the camera support WDR?
Yes. It supports 120 dB True WDR for improved imaging in scenes with strong backlighting.
Does Hikvision DS-2CD1T23G0-I support PoE?
Yes. It supports IEEE 802.3af Type 1 Class 3 PoE.
Is DS-2CD1T23G0-I suitable for outdoor use?
Yes. The camera has an IP67 water and dust protection rating, making it suitable for appropriate outdoor surveillance installations.
Does it support H.265+?
Yes. The camera supports H.265+, H.265, H.264+ and H.264 video compression.
Does the camera support Smart Detection?
Yes. The DS-2CD1T23G0-I is specified with Smart Detection features.
What is the field of view?
The 4mm lens provides approximately 86° horizontal, 47° vertical and 103° diagonal field of view.
What power options are available?
The camera can be powered through 12V DC or compatible PoE networking.
What is the price of Hikvision DS-2CD1T23G0-I in Bangladesh?
A current Bangladesh retailer listing shows a price of approximately ৳3,465, with a regular price of ৳3,550. Actual prices may change based on stock and seller.
