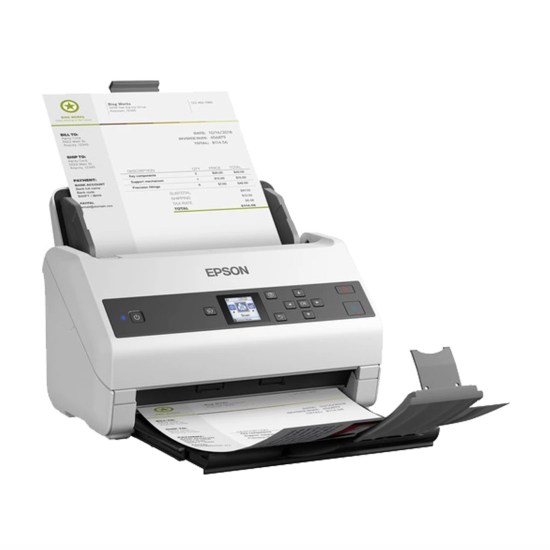

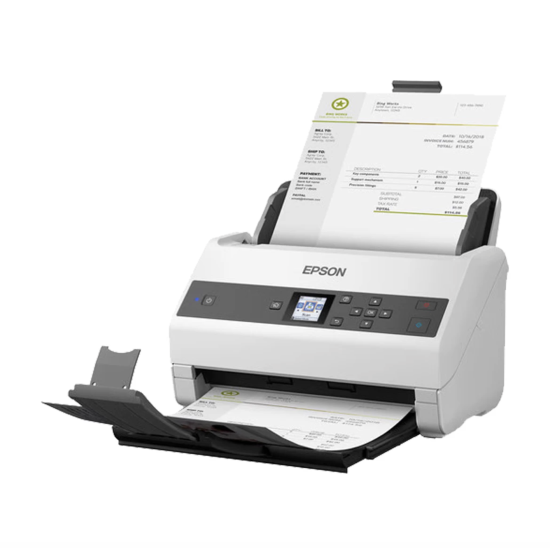

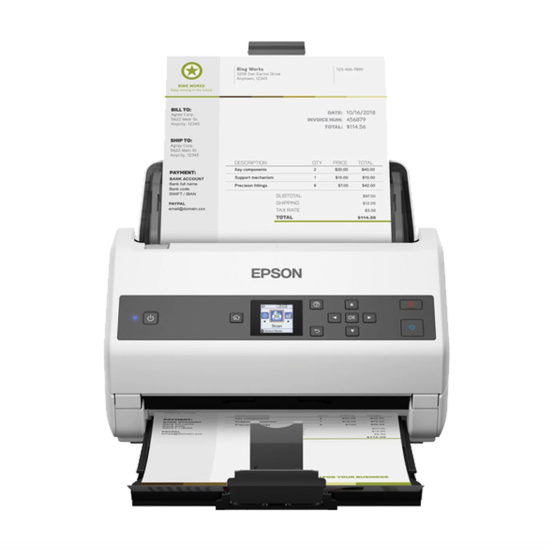

Epson DS-870 Color Duplex Sheet-fed Document Scanner
The Epson DS-870 is a high-performance color duplex sheet-fed document scanner designed for busy offices, enterprises, banks, government organizations, educational institutions, and other professional environments where fast and reliable document digitization is essential. With a 100-sheet Automatic Document Feeder (ADF) and scanning speeds of up to 65 pages per minute (ppm) / 130 images per minute (ipm), it is built to handle demanding document workflows efficiently.
The specified product code is B11B250503, while the DS-870 series is designed around high-volume document scanning, intelligent paper handling, and easy integration with document-management systems.
High-Speed 65ppm Scanning
The Epson DS-870 delivers scanning speeds of up to 65 ppm / 130 ipm at 200 and 300 dpi in black-and-white, grayscale, and color modes. Its single-pass duplex technology scans both sides of a document simultaneously, helping reduce manual handling and improve productivity.
This high-speed performance makes the scanner suitable for digitizing invoices, forms, contracts, applications, business records, and other multi-page documents.
100-Sheet Automatic Document Feeder
The integrated 100-sheet ADF allows users to load a large batch of documents and scan them continuously. It supports paper weights from approximately 27 to 413 g/m², providing flexibility for different types of documents and media.
The ADF supports common paper sizes including A4, A5, A6, B5, B6, B4, Letter, Legal, postcards, business cards, and plastic cards.
600dpi Optical Resolution
The DS-870 features 600 dpi optical resolution and supports output resolutions from 50 to 1,200 dpi. This provides detailed digital reproduction while allowing users to select an appropriate resolution based on their document requirements.
The scanner supports color, grayscale, and monochrome scanning, making it suitable for a wide variety of office digitization applications.
Intelligent Paper Handling
Epson has equipped the DS-870 with advanced paper-feed technologies designed to improve scanning reliability. Its Active Separation Roller System helps prevent multiple sheets from feeding together, while Ultrasonic Double-feed Detection helps identify double feeds.
The scanner also includes Double Feed Detection Skip (DFDS), which can be useful when scanning envelopes, documents with attached notes, and other challenging media. A Slow Mode is available for handling fragile or damaged documents more carefully.
Large Document and Media Support
The DS-870 is designed to handle a broad range of document types. It supports long documents up to approximately 6,096 mm, while folded oversized documents can also be scanned with an optional carrier sheet. Plastic ID cards and business cards are supported as well.
This flexibility makes the scanner suitable for offices where document sizes and formats can vary significantly.
USB 3.0 Connectivity and Software
The Epson DS-870 provides SuperSpeed USB 3.0 connectivity for fast data transfer. It also supports TWAIN, WIA, and ISIS drivers, allowing integration with compatible document-management applications.
Included Epson software helps users create document workflows, scan to searchable PDF files, and organize digitized information. OCR functionality can also be used to create searchable documents and editable Microsoft Office files.
High-Volume Business Scanning
The DS-870 is designed for high-volume workgroup environments. Epson specifies a peak daily duty cycle of up to 10,000 sheets for the DS-870, making it appropriate for document-intensive workplaces where large numbers of pages need to be digitized regularly.
It can be particularly useful for:
-
Corporate and administrative offices
-
Banks and financial institutions
-
Government organizations
-
Educational institutions
-
Accounting and legal offices
-
Document-management departments
-
Large-volume business environments
Why Choose Epson DS-870?
The Epson DS-870 Color Duplex Sheet-fed Document Scanner combines high-speed scanning, a 100-sheet ADF, single-pass duplex scanning, advanced paper handling, and professional document-management features.
For organizations looking for an Epson document scanner in Bangladesh, the DS-870 is a strong choice for high-volume scanning workflows. Its 65 ppm / 130 ipm performance, 600 dpi optical resolution, broad media compatibility, and USB 3.0 connectivity make it suitable for demanding professional environments.
FAQ
1. What is the model number of Epson DS-870?
The scanner model is Epson DS-870 Color Duplex Sheet-fed Document Scanner. The specified product code is B11B250503.
2. What is the scanning speed of Epson DS-870?
The DS-870 can scan up to 65 ppm / 130 ipm at 200/300 dpi.
3. How many sheets can the DS-870 ADF hold?
The Automatic Document Feeder can hold up to 100 sheets.
4. Does Epson DS-870 support duplex scanning?
Yes. It supports single-pass duplex scanning, allowing both sides of a document to be scanned simultaneously.
5. What is the optical resolution of DS-870?
The DS-870 has 600 dpi optical resolution and supports output resolution up to 1,200 dpi.
6. What is the daily scanning capacity of Epson DS-870?
The DS-870 has a peak daily duty cycle of up to 10,000 sheets.
7. Does the Epson DS-870 support color scanning?
Yes. It is a color document scanner supporting color, grayscale, and monochrome scanning.
8. What connectivity does Epson DS-870 use?
The scanner uses SuperSpeed USB 3.0 connectivity.
9. Can Epson DS-870 scan ID cards?
Yes. The scanner supports scanning of plastic ID cards and business cards.
10. What is the warranty of Epson DS-870?
The specified product listing indicates a 1-year warranty (1YW).
