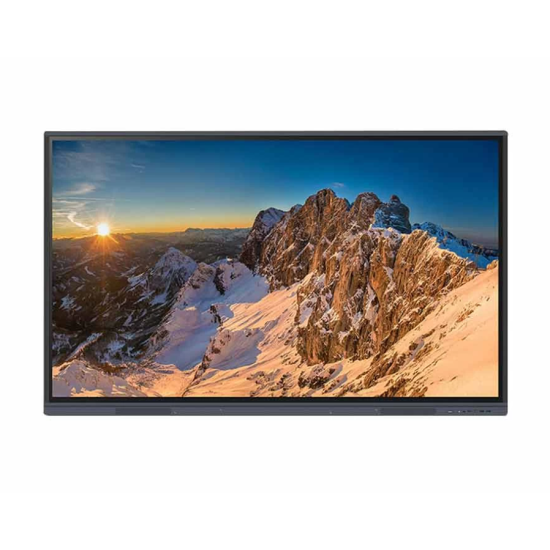

Boxlight ProColor P586UC 86" 4K Interactive Flat Panel Display
The Boxlight ProColor P586UC is an 86-inch 4K UHD interactive flat panel designed for modern classrooms, universities, training centers, corporate meeting rooms, presentation spaces, and collaborative environments. It combines a large-format 3840 × 2160 4K UHD display with 360° infrared touch technology, Android 14, built-in camera, microphone array, wireless connectivity, and professional audio.
86-Inch 4K UHD Display
The P586UC features an expansive 86-inch screen with a native resolution of 3840 × 2160 pixels and a 16:9 aspect ratio. With typical brightness of 500 cd/m², a 5,000:1 contrast ratio, and 178° horizontal and vertical viewing angles, it is designed to deliver clear and detailed content across classrooms and meeting spaces.
The large screen provides ample workspace for presentations, digital lessons, diagrams, videos, documents, and collaborative activities.
360° Infrared Touch Technology
The ProColor P586UC uses 360° infrared touch technology with a writing height of up to 2 mm and approximately ±1 mm touch accuracy. Palm rejection is also supported, helping users write naturally on the interactive surface.
This makes the display suitable for digital whiteboarding, annotation, presentations, brainstorming, group activities, and interactive teaching.
Android 14 Smart Platform
The P586UC runs Android 14.0 and uses an A72 ×4 + A53 ×4 CPU with Mali G52MC3 graphics. The standard configuration includes 8GB RAM and 128GB internal storage, with 16GB RAM and 256GB storage available as optional configurations.
An optional OPS module can also be used when a dedicated computer platform is required for more advanced applications.

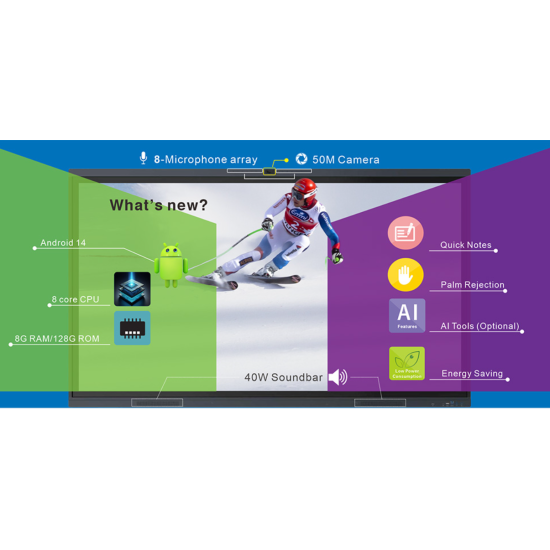

Built-In 50MP Camera and 8-Microphone Array
The P586UC includes a built-in 50-megapixel camera designed for video conferencing, remote teaching, hybrid meetings, and collaborative communication. It also features an 8-microphone array with a stated pickup distance of up to 12 meters.
For audio output, the panel incorporates 2 × 20W speakers, providing integrated sound for presentations, video conferences, multimedia lessons, and other interactive applications.
Wi-Fi 6E and Bluetooth 5.3
For wireless connectivity, the Boxlight P586UC supports Wi-Fi 6E and Bluetooth 5.3. These technologies provide modern wireless connectivity for compatible devices and network environments.
The panel is designed to support wireless collaboration and screen-sharing workflows, making it useful in smart classrooms and professional meeting environments.
Anti-Glare Glass and Palm Rejection
The P586UC features anti-glare glass to help reduce distracting reflections during presentations and interactive sessions. Its touch system also supports palm rejection, providing a more natural writing and annotation experience.
The panel's 178° viewing angle further supports visibility for users positioned across a large classroom or meeting room.
Professional Installation
The P586UC has dimensions of approximately 1,957 × 1,178.5 × 99.4 mm and weighs around 54.55 kg. It supports a VESA 800 × 600 mm mounting pattern and uses M8 × 25 mm mounting screws.
Because of its large 86-inch size and substantial weight, appropriate wall mounting or professional installation should be used.
Education and Business Applications
The Boxlight ProColor P586UC can be used in a wide range of environments, including:
-
Smart classrooms
-
Schools and universities
-
Training centers
-
Corporate meeting rooms
-
Video conferencing rooms
-
Seminar and presentation spaces
-
Government and institutional offices
-
Collaborative workspaces
Its combination of a large 4K display, interactive touch, Android platform, camera, microphone array, and wireless connectivity makes it suitable for digital teaching and professional collaboration.
Why Choose Boxlight ProColor P586UC?
The Boxlight ProColor P586UC 86" 4K Interactive Flat Panel Display is designed for organizations that need a large, interactive digital workspace. Its 86-inch 4K UHD display, 500 cd/m² brightness, 360° infrared touch, Android 14, 8GB RAM, 128GB storage, 50MP camera, 8-microphone array, Wi-Fi 6E, and Bluetooth 5.3 provide a comprehensive platform for modern education, presentations, meetings, and collaboration.
For customers searching for an 86-inch interactive flat panel in Bangladesh, the P586UC is a professional large-format solution for smart classrooms, universities, training facilities, corporate offices, and collaborative environments.
FAQ (Frequently Asked Questions)
1. What is the screen size of Boxlight ProColor P586UC?
The Boxlight ProColor P586UC features an 86-inch interactive flat panel display.
2. What is the resolution of Boxlight P586UC?
It has a 4K UHD resolution of 3840 × 2160 pixels.
3. What operating system does the P586UC use?
The P586UC runs Android 14.0.
4. How much RAM and storage does P586UC have?
The standard configuration provides 8GB RAM and 128GB internal storage. Optional 16GB/256GB configurations are also available.
5. Does Boxlight P586UC support touch?
Yes. It uses 360° infrared touch technology with approximately ±1 mm accuracy.
6. Does the P586UC have a built-in camera?
Yes. It features a built-in 50MP camera for video conferencing and collaboration.
7. How many microphones does P586UC have?
The panel features an 8-microphone array with a pickup distance of up to 12 meters.
8. Does Boxlight P586UC support Wi-Fi?
Yes. It supports Wi-Fi 6E and Bluetooth 5.3.
9. Is the P586UC suitable for smart classrooms?
Yes. Its large 4K display, interactive touch technology, Android platform, camera, microphone array, and wireless connectivity make it suitable for smart classrooms.
10. What is the mounting size of Boxlight P586UC?
The P586UC supports a VESA 800 × 600 mm mounting pattern.
